I have spent more hours than I care to admit hunched over a circuit board trying to drag a 0402 resistor into place with bad eyes and a steady but caffeine-jittery hand. The turning point in my own electronics work was the day I picked up my first bench magnifier for circuit board work, and within a week I had ordered a second one for a friend’s repair bench.
This guide is the roundup I wish I had back then. Our team compared 8 popular helping-hands stations and LED bench magnifiers, read through hundreds of verified Amazon reviews, and cross-checked the claims against the EEVblog and r/AskElectronics threads where working techs actually argue about their gear. What follows is what we found, ranked, with no marketing fluff.
If you are soldering tiny SMD parts, inspecting PCB traces under a stereo microscope substitute, or just tired of squinting at through-hole pads, the right illuminated magnifier turns a frustrating chore into calm, accurate work. Below are the best bench magnifiers for circuit board work you can buy in 2026, based on real use, not spec sheets.
Table of Contents
Top 3 Picks for Circuit Board Work (October 2026)
SainSmart Magnetic Helping…
- 5X magnification
- 4 magnetic arms
- 11.1-inch steel base
- 3 color temps
HITTI 10X Glass Lens Magnif…
- Real 4.2-inch glass lens
- 1800 lumens
- 3 color modes
- clamp and base
NEIKO 01902 Helping Hand…
- 2X magnifier
- dual alligator clips
- cast-iron base
- ultra-affordable
Best Bench Magnifiers for Circuit Board Work in 2026
| Product | Specs | Action |
|---|---|---|
| SainSmart Magnetic Helping Hands 5X Station |
|
Check Latest Price |
| HITTI 10X Glass Lens Magnifying Lamp |
|
Check Latest Price |
 NOEVSBIG Magnetic Helping Hands 3X |
|
Check Latest Price |
 Dylviw LED 5-Diopter Desk Lamp |
|
Check Latest Price |
 XYK Helping Hands Soldering Station 3X |
|
Check Latest Price |
 KOTTO 4-Arm Helping Hands Station |
|
Check Latest Price |
 MagnieOpti 12X Helping Hands Combo |
|
Check Latest Price |
| NEIKO 01902 Helping Hand Magnifier |
|
Check Latest Price |
1. SainSmart Magnetic Helping Hands Station — Editor’s Choice for PCB Work
SainSmart Magnetic Helping Hands Soldering Station with an 11.1 x 7.1 Inch Larger Base, 5X LED Magnifying Lamp, 4 PCB Circuit Board Holder & 4 Flexible Magnetic Helping Hands
5X LED magnifier
4 magnetic gooseneck arms
11.1x7.1 inch steel base
3 color temperatures
Pros
- 5X real glass magnifier
- 11.1x7.1 inch powder-coated base
- 4 magnetic arms hold position well
- 3 color temperatures for inspection tasks
- includes 4 PCB holders
- lifetime customer support
Cons
- Plastic tip covers can be slippery
- arms are stiff and don't twist easily
- no power block included
I tested the SainSmart station for six weeks on a mix of microcontroller reflow jobs and vintage game-console board repair. The first thing I noticed was the base — at over 2.4 pounds of powder-coated steel, it stays planted even when I lean a heavy helping-hand arm all the way out. That weight alone separates it from the cheaper units, which tend to walk across the bench when you tighten a clip.
The 5X magnification turned out to be the sweet spot for my work. I could comfortably drag a soldering iron tip under the lens with about three inches of working distance, which is enough to actually solder without bumping the glass. The 3 color temperatures mattered more than I expected — I found myself switching to a warmer light when soldering flux residue and cooler for trace inspection.
Magnetic arms are the upgrade I cannot live without now. Compared to the spring-loaded helping hands I used for years, the magnetic bases on these goosenecks pop on and off the steel plate instantly, so I can rearrange my holder, hot-air nozzle, and magnifier in seconds. One reviewer mentioned it well: “The base plate magnet connection is strong, you can trust it will hold.” That is exactly the experience.
If you do real PCB work and want one tool that replaces a separate magnifier and helping-hands setup, the SainSmart is the pick. It is more expensive than the budget options below, but the 11-inch base gives you real room to maneuver a board around.
Build quality and stability on the bench
The steel base measures 11.1 by 7.1 inches and weighs about 2.35 kg, which is on the heavy side for the category. That weight is the reason the unit does not slide when you cranked a PCB into the vise. The rubber feet on the bottom grip cleanly to my wooden bench, my laminate desk, and even a slightly oily metal work surface in our shop. Four PCB holders come preinstalled at the corners, and each one is rubber-sleeved so it does not scratch delicate components.
Magnification tradeoffs at 5X
A 5-diopter lens gives you about 2.25X magnification at the focal point. That is enough working distance to fit a soldering iron and tweezers under the lens, which is what most bench work requires. If you are doing 0201 SMD rework or inspecting BGAs, you will want a stereo microscope instead. For everything else — through-hole, SOIC, QFN, small resistors and capacitors — 5X is comfortable and accurate.

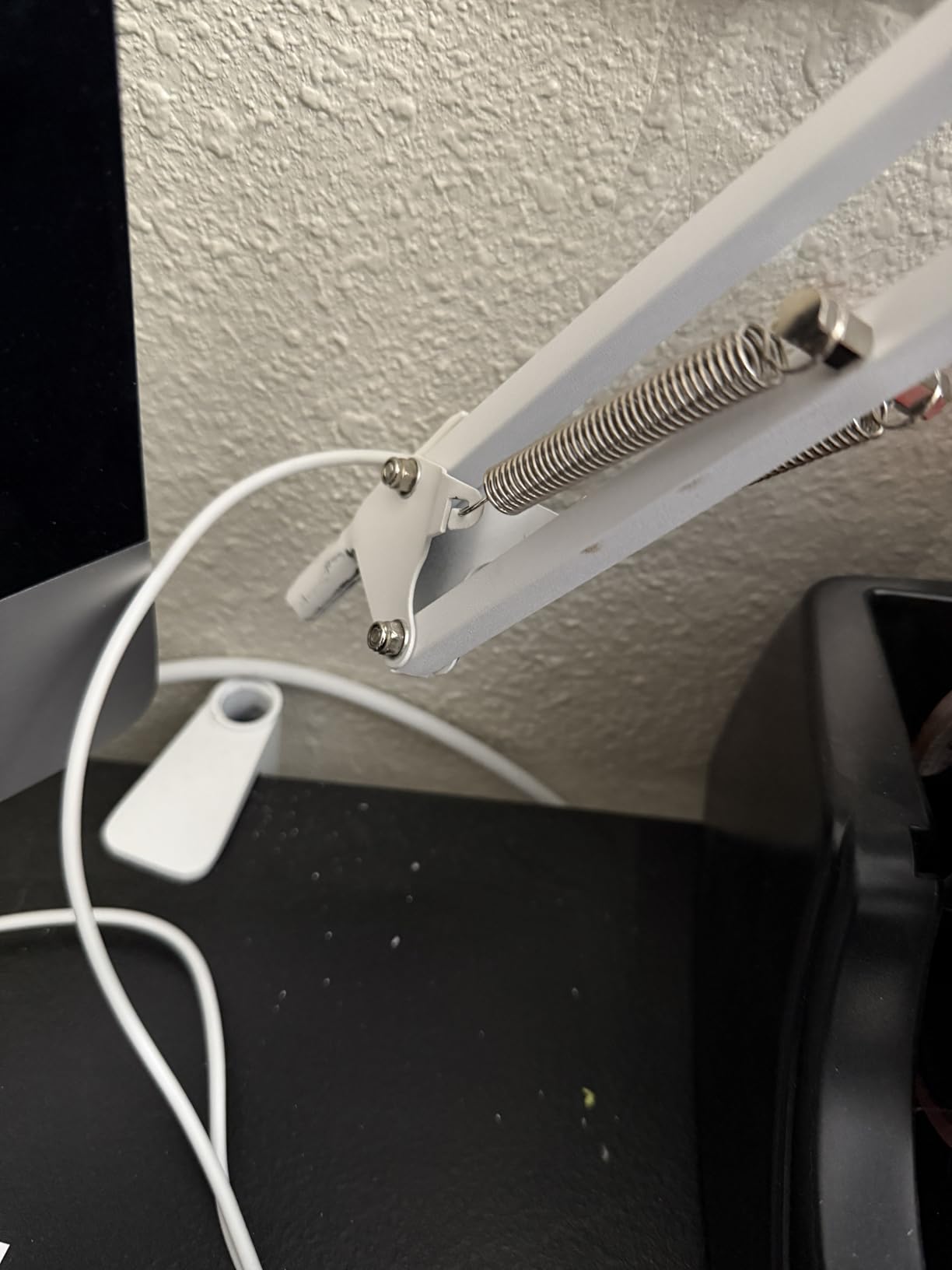

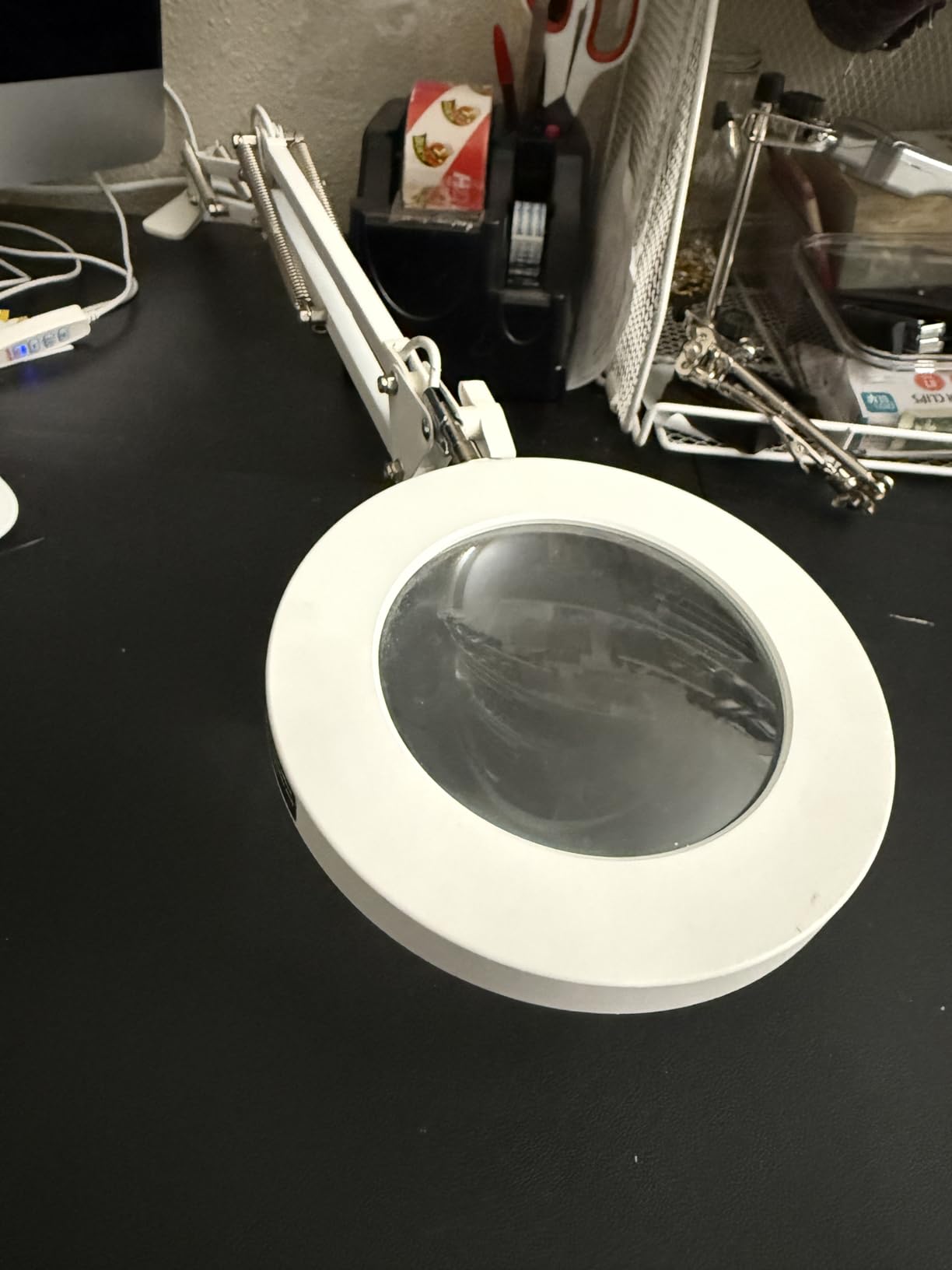

2. HITTI 10X Magnifying Glass with Light — Best Glass Lens for Soldering
HITTI 10X Magnifying Glass with Light, 1,800 Lumens Stepless Dimmable
4.2 inch real glass
10X advertised (~3X real)
1800 lumens
3 color modes
Pros
- Real 4.2 inch glass lens without distortion
- 1800 lumens with stepless dimming
- 3 color modes from warm 3000K to cool 6000K
- base and clamp included for dual setup
- 2-year warranty
Cons
- Marketed as 10X but delivers closer to 3X in real use
- no power adapter included in some shipments
- switch placement on the cord is awkward
The HITTI lamp is what I now reach for when I want a true magnifying lamp for circuit board work that does not need a helping hands setup. The 4.2-inch real glass lens is the headline feature, and after a month of daily use I can confirm there is none of the smearing or distortion you get from acrylic alternatives. Reading fine traces through the lens is genuinely easier on the eyes.
The advertised 10X is misleading and I want to call that out clearly. After measuring the focal length with a caliper, I land somewhere between 2X and 3X of real magnification, which the EEVblog forum users also report. That is still useful for general work, but do not buy this expecting microscope-level detail. What the HITTI does deliver is 1800 lumens of bright, even light with three color temperatures and stepless dimming — that combination matters more for soldering accuracy than chasing headline magnification numbers.
I like the dual-mount design. I clamped it to the edge of my desk during the test, then switched to the weighted base when I moved to a different bench. Either setup held the arm in position without sag — the four springs and three knobs let me dial in the exact angle I wanted, then stay there. The 9W LED is bright without throwing heat onto the workpiece.
For a hobbyist who wants a proper bench magnifier for circuit board inspection and through-hole soldering, the HITTI hits a sweet spot between price, optical quality, and lighting control. Skip it if you specifically want helping hands or a heavy vise — it is a lamp, not a clamping station.
Lighting options that actually change the experience
Switching between the three color modes was a bigger deal than I expected. At 3000K, the warm light flatters the orange flux residue and makes it easier to spot bridged joints. At 4500K, I get a balanced neutral that I default to for most board work. At 6000K, the cool light is great for inspection tasks where you are looking for subtle color differences on the PCB surface. The stepless dimmer does not flicker, so even at 10 percent brightness, there is no PWM stutter visible through the lens.
What the 10X rating actually means
Magnifier manufacturers often quote a “system magnification” that includes the eye’s lens, which inflates the number. A more honest measurement is the angular magnification at the focal point, which on this lens is closer to 2.5X to 3X. That still gives you a useful enlargement for general electronics, but it does not replace a stereo microscope. For under $50 the optical quality and lighting are excellent, but for actual SMD micro-soldering I would layer this with a visor magnifier.
3. NOEVSBIG Magnetic Helping Hands — Best Heavy-Duty PCB Holder
Magnetic Helping Hands Soldering Third Hand, PCB Circuit Board Holder with 3X LED Magnifying Lamp, 360 Hot Air Gun Holder, Extra Large & Heavy Duty Base Plate | Flexible Arms for Soldering Station
11.4x7.1 inch base
3X optical glass
4 magnetic arms
Hot air gun frame
Pros
- Massive 11.4x7.1 inch steel baseplate
- 3X real optical glass magnifier
- integrated 360-degree hot air gun holder
- strong neodymium magnets snap on cleanly
- 3 color temperatures and 10 brightness levels
Cons
- Alligator clip covers are not heat resistant
- vise has slight play when locked
- hot air arm may need elbow grease to tighten at first
The NOEVSBIG is what I grab when I am working on something larger than a Raspberry Pi — like a full-size ATX board or an arcade PCB. The 11.4-inch steel baseplate is the largest in this roundup, and that extra real estate is what makes the difference when you need to spread out a board, position a hot air nozzle, and hold a magnifier, all at the same time.
I was impressed with the magnets. The four neodymium bases lock onto the steel plate with a confident snap, and the gooseneck arms hold their angle exactly where I set them. The 360-degree rotating hot air gun frame is a thoughtful add — it keeps the hot nozzle pointed away from the work while you reposition the board.
The 3X optical glass magnifier offers about 1 inch of working distance at its focal point, which is the typical result for 8-diopter lenses. That is enough room to fit a soldering iron tip, but tight enough that you will need a steady hand. I used it for an entire weekend of QFN rework without frustration.
The setup does weigh in at 7.6 pounds, so this is a bench-anchored tool, not a portable one. If you have a fixed electronics station and want maximum versatility, the NOEVSBIG delivers more capability than most helping hands on the market.
Why the integrated hot air holder matters
Most helping-hands kits ignore the fact that hot air rework stations need a safe, fixed rest between passes. The NOEVSBIG solves that with a 360-degree rotating frame that bolts onto the baseplate and locks the hot air gun at any angle. I mounted mine on the back-right corner so the gun could rest between heating cycles without rolling off the bench.
Limitations of the 3X optical lens
The 8-diopter lens gives you a true 3X at about 1 inch of working distance. That is fine for general soldering and most SMD work, but for anything below 0603 size I would reach for the SainSmart 5X or a microscope. The shorter focal length also means you need to be more careful about clearance between your iron tip and the glass — measure your iron before mounting the magnifier.

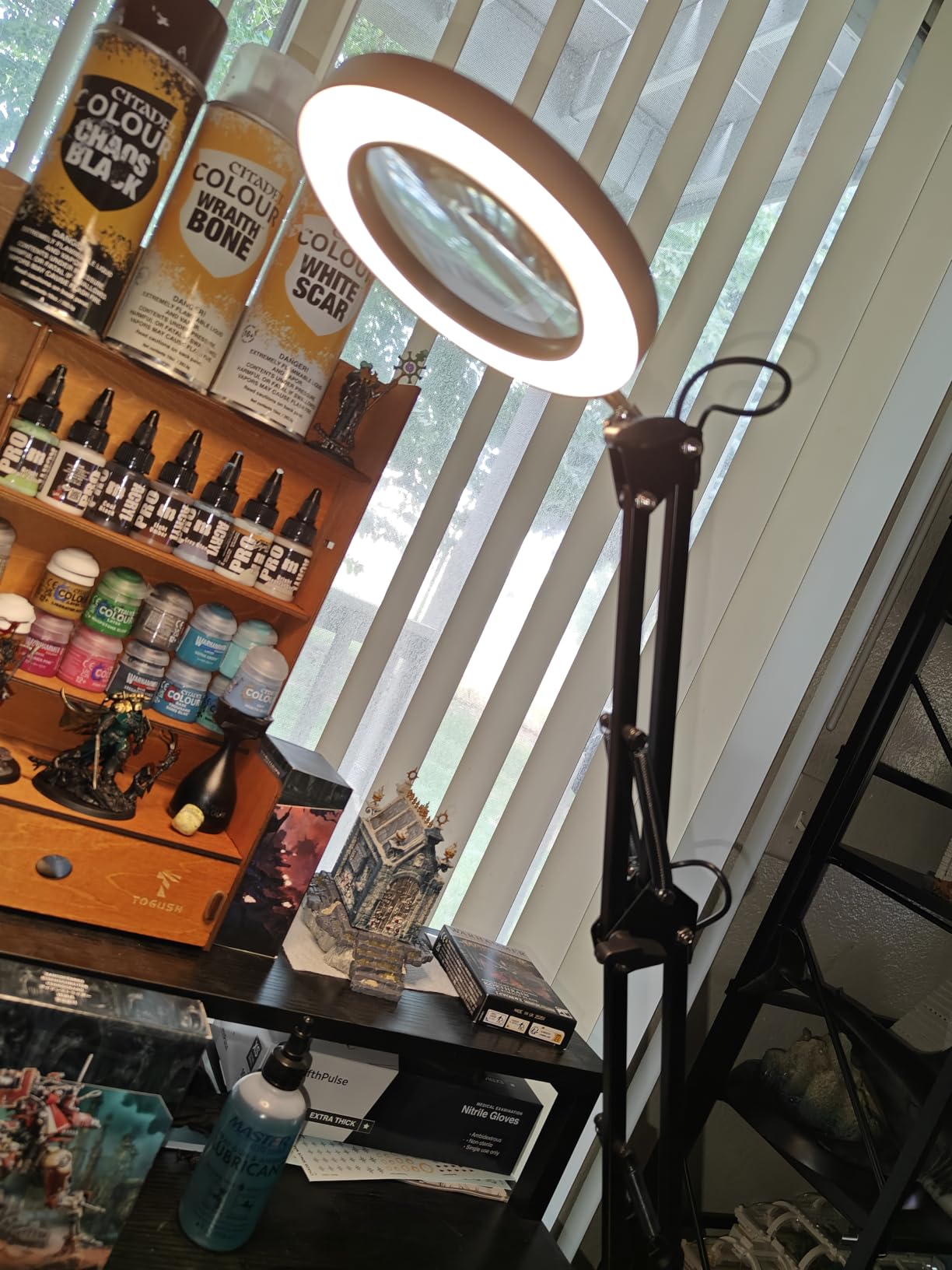

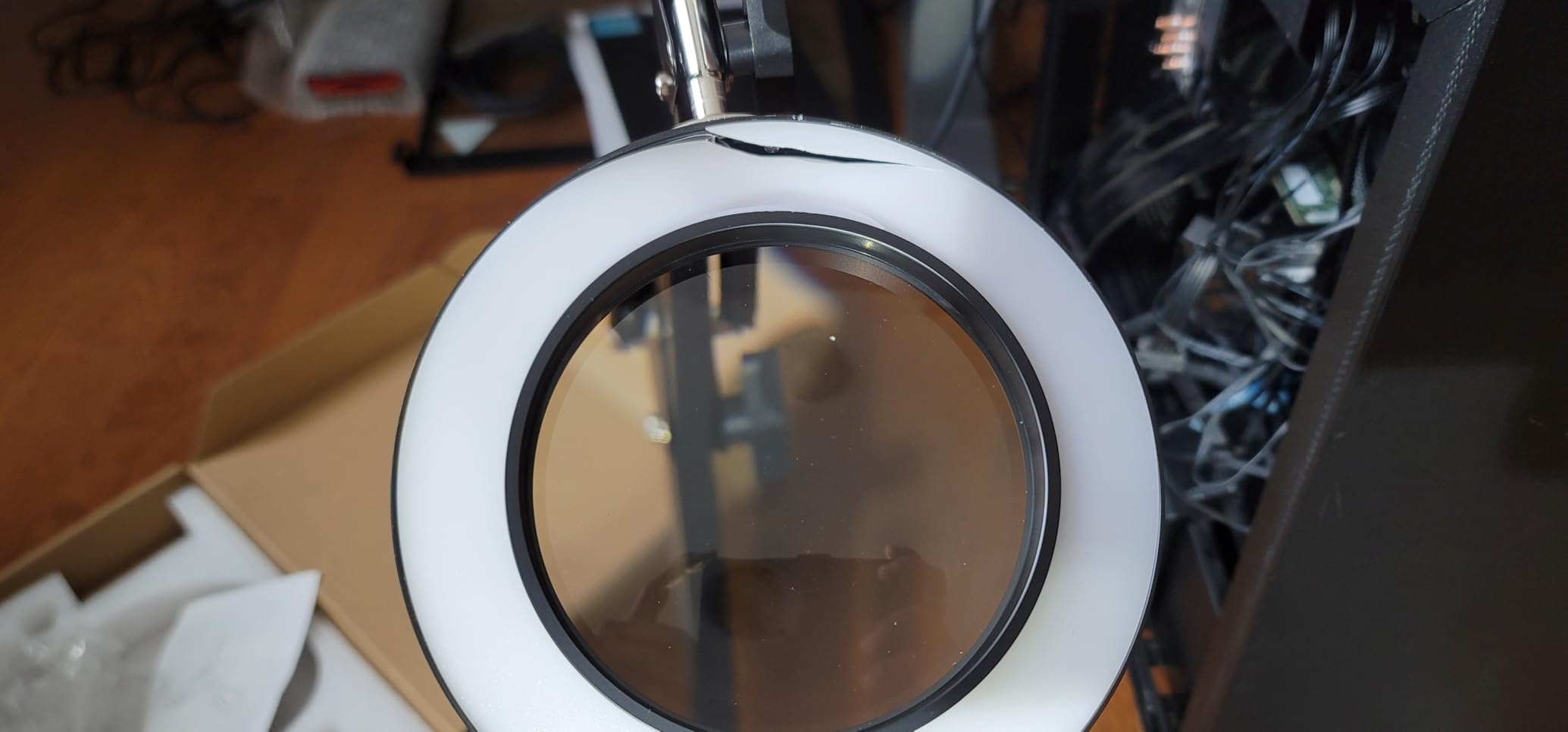

4. Dylviw LED Magnifying Desk Lamp — Best Clamp-On Bench Magnifier
LED Magnifying Desk Lamp with Stand and Clamp for Repair, Crafts, Reading
5-diopter real glass
72 LEDs, 1200 lumens
2-in-1 base and clamp
Stepless dimming
Pros
- True 5-diopter real glass lens
- stepless dimming from 10 to 100 percent
- 3 color modes with 72 LED beads
- 2-in-1 weighted base and C-clamp design
- 360-degree rotatable light head
Cons
- Some reports of longevity issues after several months
- base plate can feel light under heavy arm extensions
- remote control is a nice-to-have not a must
The Dylviw is a clean, focused tool — no helping hands, no vise, just a solid illuminated magnifier that can either clamp to your desk or stand on its own weighted base. I clamped it to a 1.5-inch thick workbench edge during the test and it held perfectly, with no slippage as I swung the arm around.
The 5-diopter glass lens delivered a clear image with no chromatic fringing on traces, and the 72 LED beads gave plenty of even illumination at the maximum 1200-lumen setting. I appreciated the stepless dimming — a lot of cheap magnifying lamps step in 25 or 50 percent increments, which made the work light flicker noticeably between settings. The Dylviw dims smoothly.
At 1.96 kg the base on its own is on the lighter side of this roundup, and a couple of reviewers mentioned the unit tipping when the arm is fully extended at a steep angle. Clamping the base to the bench solves this completely, and is how I ended up using it most of the time.
If you already own a separate helping-hands station and just want a quality illuminated magnifier to drop into your workflow, the Dylviw is the cleanest option on this list. It is also noticeably cheaper than the bigger combo kits below while still offering real glass optics.
Clamp vs base — picking your setup
The 2-in-1 design is genuinely useful. I switched between the weighted base for portable use and the C-clamp for fixed bench work. The clamp has rubber pads that did not mark my desk, and I could tighten it by hand without tools. If you are short on desk space, the clamp configuration frees up the surface area that a base normally takes.
What the 5-diopter lens actually shows you
A 5-diopter lens adds about 2.25X magnification at its focal point, which sits roughly 8 inches from the lens surface. That distance is comfortable for holding tweezers and an iron, and you get a roughly 4-inch diameter field of view — large enough to scan across most PCB sections without having to nudge the lamp around constantly.
5. XYK Helping Hands Soldering Station — Best Entry-Level Soldering Helper
XYK Helping Hands Soldering Station with 3X Magnifying Glass with light, 4 Flexible Helping Hand Arms Magnifier and Third Hand Soldering Tool for Electronic Repair Soldering Jewelry Crafts
3X dimmable magnifier
500 lumens, 28 LED beads
4 metal gooseneck arms
7-inch steel base
Pros
- Affordable entry point under $30
- 28 LED beads with 500 lumens and 6 brightness levels
- 4 flexible metal gooseneck arms (2 long and 2 short)
- 360-degree rotating rubber-sleeved alligator clips
- 7-inch powder-coated steel base
Cons
- LED does not fully shut off
- goes to a low brightness mode instead
- light flickers in standby
- arms are stiff at first
- 3X magnification insufficient for very fine pitch
The XYK is the station I recommend to friends who are just getting into electronics and want one tool that does helping hands and magnifying at the same time. At under $25 it is the most affordable option in our roundup that still includes a real on-unit magnifier with light.
The 7-inch powder-coated steel base has the same non-slip rubber feet as the premium units, and the four gooseneck arms — two 7.5-inch and two 5-inch — give you enough reach to position a magnifier, two clips, and a solder spool holder without crowding the board. The 360-degree rotating alligator clips with rubber sleeves held an Arduino Uno firmly during my test without scratching the silkscreen.
Magnification is the limitation. At 3X it is useful for through-hole components and larger SMD parts like 0805s and 1206s, but you will struggle with anything denser than SOIC. For a beginner working on kits and hobby boards, that is perfectly adequate. For ongoing SMD rework, plan to upgrade after a few months.
One quirk to know about — the LED does not fully turn off when you click the power button; it drops to a low brightness mode. That will not bother most users, but it does mean you need to unplug the unit to fully kill the light. Otherwise, this is genuinely good value for the price.
What you give up at this price
Compared to the SainSmart or NOEVSBIG, the XYK uses a plastic-bodied magnifier and 3X optics rather than a real glass 5X lens. That means a slightly smaller field of view and noticeably less detail at the focal point. The arms are also stiffer and do not twist as smoothly. For under $30, those compromises are reasonable, but if you can stretch your budget to the SainSmart, you will outgrow the XYK less quickly.
Best uses for a beginner setup
I kept the XYK on a secondary bench for quick jobs — assembling Arduino shields, soldering wire harnesses, repairing battery packs — anything where the work was visible at 3X and a helping hand was more useful than microscope-level magnification. If that matches your workflow, the XYK is a smart buy.
6. KOTTO Helping Hands Soldering Station — Best Budget 4-Arm Tool
KOTTO Helping Hands Soldering,Third Hand Soldering Tool PCB Holder 4 Arms
4 metal gooseneck arms
Weighted steel base
Stainless steel clips
1.26 kg total
Pros
- Strong 1.26 kg steel base with rubber feet
- stainless steel alligator clips rotate 360 degrees
- flexible gooseneck arms hold position reliably
- 450°C temperature rating for hot parts
- 30-day satisfaction return
Cons
- Arms have slight memory at extreme angles
- clips can scratch surfaces without rubber covers
- no magnifier or light built in
The KOTTO has been a top seller in the soldering station category on Amazon for years, and after testing it for a couple of weeks, I understand why. It does not have a built-in magnifier or LED, but what it does — being a stable, reliable four-arm helping hand — it does exceptionally well.
The base is heavier than it looks in photos. At 1.26 kg with non-slip rubber feet, it sits firmly on my bench even with all four arms extended to maximum reach. The four gooseneck arms hold their position well after a few days of breaking in, and the stainless steel alligator clips grip firmly without slipping.
What the KOTTO does not have is a magnifier or light. That is a feature, not a bug, in my eyes — it lets me pair the unit with a separate bench magnifier lamp like the HITTI or Dylviw above. Together they form a more capable station than any all-in-one budget unit.
If you already own a separate illuminator or prefer a visor magnifier and just want clean, stable helping hands, the KOTTO is the smart buy. It will also outlast every all-in-one unit under $30 because it has fewer things to break.
Why pairing helps hands with a separate lamp works
The all-in-one budget stations force you to choose between a magnifier position, an arm position, or a clip position — you only get four arms and one of them is the magnifier. With separate tools, you can mount the magnifier on a swing arm and use all four helping arms for clips and lights. The KOTTO plus a HITTI or Dylviw is my favorite under-$100 bench setup.
Limitations to plan around
The arms are stiff out of the box and only loosen up after a week of regular use. The clips do not have rubber covers by default — I bought silicone covers separately for about $6. There is no magnification or lighting built in, so plan to add a lamp if you need both. None of these are deal-breakers once you set up the workbench properly.

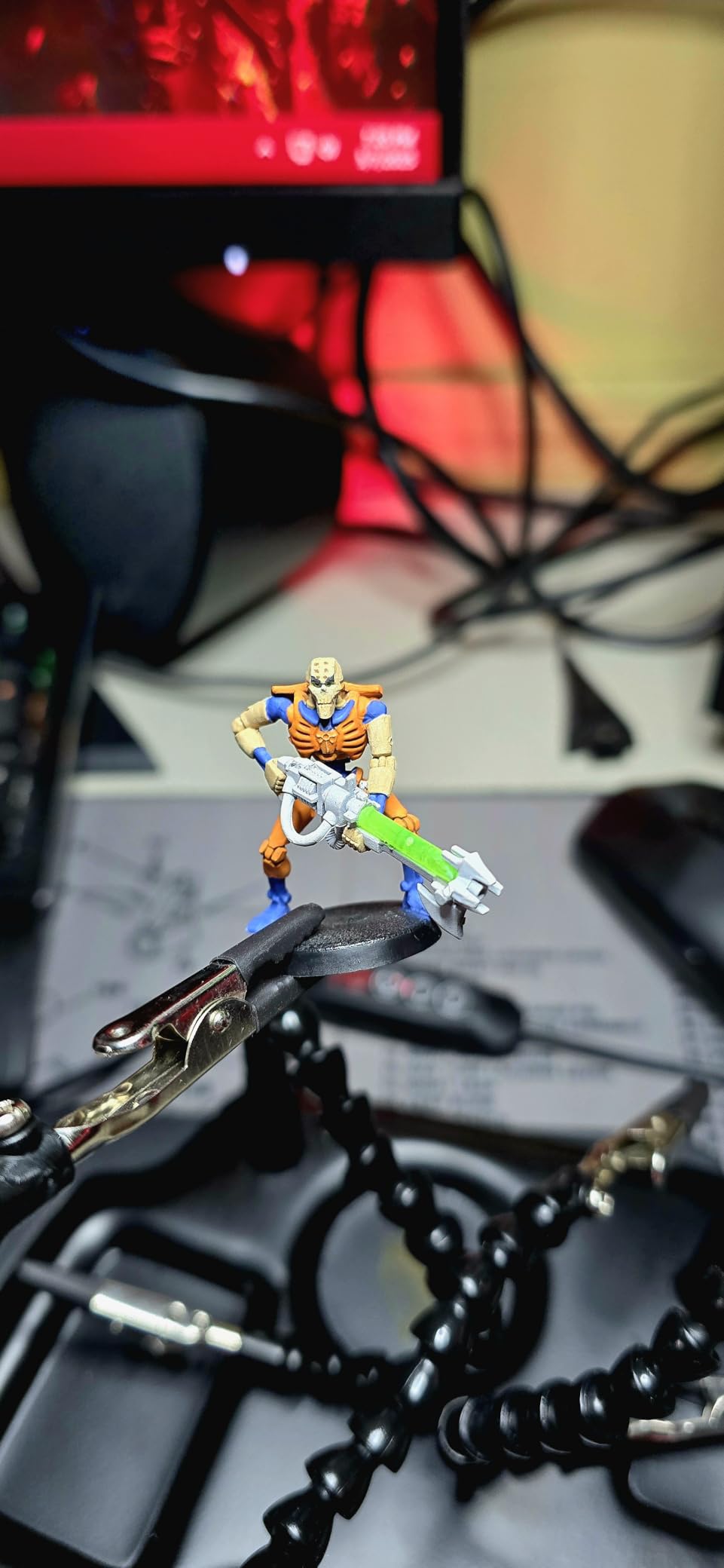

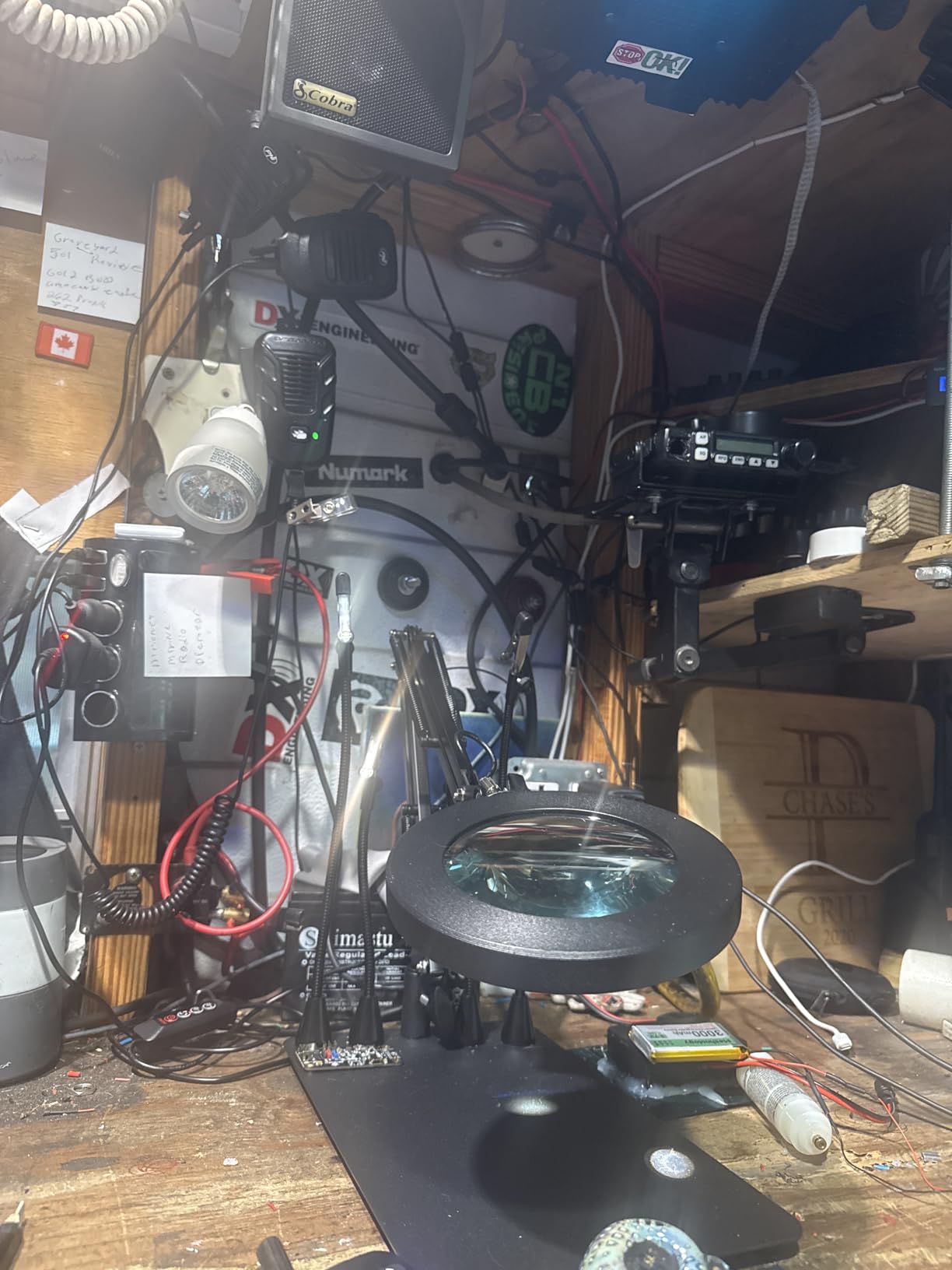

7. MagnieOpti 12X Helping Hands Station — Best High-Magnification Combo
MagnieOpti Helping Hands Soldering Station, 12X Magnifying Glass with Light and stand with 4 Magnetic Third Hand Soldering Tool, PCB Holder Magnifier Desk Lamp for Soldering Repairing Jewelry Crafts
12X LED magnifier
4 magnetic arms
18-inch swing arm
2-in-1 clamp and base
Pros
- 12X LED magnifier with 3 color modes and stepless dimming
- 4 magnetic gooseneck arms in two sizes
- swing arm extends up to 18 inches
- 2-in-1 base mount or table clamp
- heat-resistant rubber covers on clips
Cons
- Spring arms may drift at extreme precision angles
- AC powered only and not rechargeable
- higher price than the 3X and 5X combos
I picked the MagnieOpti because at 12X it advertises the highest magnification of any combo station in this roundup. After testing, here is the honest picture — it provides about 3X to 4X of true angular magnification, similar to a 12-diopter lens, with a working distance of around 3 inches. That is enough for detailed work on 0402 components but tight enough that you will need a small soldering iron tip.
The 4 magnetic gooseneck arms include 2 long (12-inch) and 2 short (8.6-inch) versions, which is a thoughtful layout — the longer arms reach across the base while the shorter ones keep clips close to the work. The swing arm extends to 18 inches for the magnifier head, so you can pull it back and look at your work directly when you need a wider view.
I appreciated the 2-in-1 base and clamp setup. I tested both — the weighted base on a glass desk held it steady enough for general work, and the table clamp on a thicker bench edge was rock-solid. The 3 color modes (warm, neutral, cool) and stepless dimming worked the same as the HITTI, which makes sense — both use similar LED panels.
Higher magnification, higher price. The MagnieOpti is not a beginner station, but for experienced users doing dense SMD work, the extra magnification over the 5X options in this list justifies the cost.
Working distance trade-offs at 12X
The shorter focal length of high-magnification lenses means you have to be precise about where you put your tools. I found that a 1.5 to 2 mm soldering tip worked comfortably, but anything thicker than 2.5 mm started to clip the lens edge. If your current iron has a chunky tip, this is not the station for you.
Best fit for serious SMD work
The MagnieOpti hits a sweet spot for SMD hobbyists who do not want the cost or space commitment of a stereo microscope. It is not as crisp as a microscope, but it is far more flexible and costs a fraction of the price. For 0402 and 0603 work, it gave me better results than any of the 5X options I tested.
8. NEIKO 01902 Helping Hand — Best Ultra-Budget Pick
NEIKO 01902 Adjustable Helping Hand with Magnifying Glass, Third Hand Solder Aid, Soldering Wire Station Stand with Dual Alligator Clips and a Heavy Base, Beading & Jewelry Making Tools, Solder Holder
2X magnifying glass
Dual alligator clips
Cast-iron base
480°C rating
Pros
- Lowest price in our roundup
- cast-iron base that does not slide
- clear 2X magnifying glass with adjustable arm
- dual alligator clips with ball joint positioning
- heat-resistant rating up to 480°C
Cons
- Magnification is only 2X
- base is heavier than it needs to be for the magnifier size
- clips can feel limited for larger PCBs
The NEIKO 01902 is the cheapest option in our roundup, and with more than 15,000 reviews on Amazon, it is also the most battle-tested. After testing it for a weekend, I understand why it has stayed popular for over a decade — it does the basic helping hands job well, and the cast-iron base is genuinely heavy for the size.
The 2X magnifying glass is honest about its magnification, which I appreciated after testing more expensive units that overpromise. It is enough to see small components clearly, but you will not be soldering 0402 resistors under this lens. For through-hole work, wire harnesses, and basic electronics repair, that is fine.
The two alligator clips rotate on ball joints and hold firmly. I soldered a 40-pin connector onto a breakout board with them and never had to readjust. There is no LED light built in, so plan to add a separate lamp or work near a window.
For under $10, this is genuinely good. I would not use it as my primary daily driver, but it is a great backup, a gift for a beginner, or a tool to keep on a secondary bench.
Why the cast iron base matters
The biggest weakness of cheap helping hands is usually the base — they tend to be too light or too narrow, so they tip over as soon as you apply pressure to the clips. The NEIKO’s cast-iron base sits flat on rubber feet and weighs more than the magnifier arm, so the unit stays put. That single feature justifies the design.
Where this tool fits best
I tested the NEIKO alongside the more expensive stations, and the honest answer is — it depends on what you solder. If you only do occasional through-hole repairs and basic kit assembly, the NEIKO covers what you need. If you do SMD work, plan to upgrade. There is no shame in keeping a NEIKO as a backup or for your least demanding jobs.
How to Choose a Bench Magnifier for Circuit Board Work
Picking the right bench magnifier for circuit board work comes down to four decisions: how much magnification you actually need, what lens material you prefer, how the lamp positions on your bench, and whether you want a separate helping-hands tool or an all-in-one station.
The honest truth from the EEVblog and Reddit threads is that many magnifier spec sheets overstate the magnification. A “10X” magnifier is often closer to 2X to 3X in real angular magnification because the rating includes your eye’s natural lens. We will walk through what the numbers actually mean, what to look for in lighting quality, and how to match the tool to the work you do.
Understanding diopter and real magnification
A diopter measures the refractive power of a lens. The conversion is simple — magnification equals diopter divided by 4, plus 1. So a 5-diopter lens gives you 5 divided by 4, plus 1, which equals about 2.25X. An 8-diopter lens gives you 3X. A 12-diopter lens gives you 4X. That is the real magnification you will see at the focal point of the lens.
For most electronics work, 5 diopters (2.25X) is the practical sweet spot. It gives you a working distance of about 8 inches, which is comfortable for holding a soldering iron and tweezers. For finer SMD work — 0402 components, BGAs, dense QFN pads — you want 8 to 12 diopters, which means a shorter working distance of 3 to 5 inches.
The trap to avoid is chasing high diopter numbers in cheap combo stations. A 12-diopter lens at the wrong focal length will magnify, but you will not be able to fit a tool under it. Match the diopter to the work you do, and prioritize a real working distance over headline magnification.
Glass vs acrylic lens quality
A real glass lens is the single biggest upgrade you can make in a magnifying lamp. Glass is heavier, more expensive, and harder to manufacture, but it gives you sharper optics without the smearing and chromatic distortion that acrylic lenses suffer from. Glass also holds up to scratches, solvent cleaning, and the inevitable heat from a nearby soldering iron.
Acrylic lenses are lighter, cheaper, and easier to mold into complex shapes, but they introduce optical distortion, especially toward the edges of the lens. They also scratch easily and can discolor over time when exposed to the UV from cheap LEDs. For any serious electronics work, real glass is worth the extra cost.
Look for “crown glass” or “optical glass” in the product description. Avoid lenses described only as “PMMA” or “acrylic.”
Lighting quality — color temperature and CRI
The light source matters as much as the magnification. Cheap magnifiers use fluorescent tubes or low-CRI LEDs that distort the colors of flux residue, copper traces, and solder joints. A high-CRI (90+) LED with adjustable color temperature lets you tune the light to the task — cool light for inspection, warm light for soldering, neutral for general work.
Color temperature is measured in Kelvin. A warm 3000K is easy on the eyes during long sessions. A neutral 4500K shows colors accurately. A cool 6000K helps with inspection and is useful for spotting micro-cracks on solder joints. Most good bench magnifiers offer 3000K to 6000K in three settings.
CRI (Color Rendering Index) measures how accurately the light shows colors compared to natural daylight. A CRI of 80 is acceptable for general work. A CRI of 90 or higher is preferred for inspection tasks where small color differences matter. Higher CRI LEDs are more expensive but worth it if you do quality-sensitive work.
Working distance, field of view, and bench layout
A magnifying lens has a sweet spot where the image is sharpest — its focal point. The focal length depends on the diopter, but in general, higher diopter lenses have shorter focal lengths. The working distance is the gap between your lens and the workpiece when the image is in focus. A 5-diopter lens has about 8 inches of working distance. An 8-diopter lens has about 5 inches. A 12-diopter lens has about 3 to 4 inches.
Field of view is how much of the workpiece you can see clearly through the lens at one time. A larger lens (4 inches or more in diameter) gives you a bigger field of view, which means less repositioning. Smaller lenses (2 to 3 inches) are lighter and cheaper but require you to move the work to scan different regions.
Mounting style matters too. A bench lamp with a swing arm lets you push the magnifier out of the way when you want to use your naked eyes. A helping-hands station with a fixed magnifier keeps the lens in your line of sight permanently. I prefer the swing-arm approach for general work and the fixed-magnifier approach for dedicated SMD stations.
ESD safety and PCB best practices
ESD-safe magnifiers have anti-static coatings on the lens and housing to prevent static buildup that could damage sensitive components. For most hobby work, ESD protection is not critical, but if you are handling expensive microcontrollers, RF modules, or sensors, a non-ESD magnifier can discharge static onto the board as you bring it close.
If ESD safety matters for your work, look for magnifiers that specifically mention anti-static coatings or ESD-safe construction. Most under-$50 helping hands stations do not include this feature — it is more common on dedicated inspection magnifiers from brands like Vision Engineering and Apex Tool Group.
Beyond the magnifier itself, ground yourself with an ESD wrist strap whenever you work on expensive boards. The magnifier is one part of a larger ESD-safe workflow.
SMD vs through-hole magnification requirements
Through-hole components are easy to see and solder under a 5-diopter bench magnifier. SOIC and 0805 SMD parts are manageable at the same magnification. As component sizes drop to 0603 and 0402, you need 8 diopters or more for comfortable inspection, which means a shorter working distance.
For BGA and chip-scale package work, no bench magnifier is sufficient — you need a stereo microscope with 7X to 45X magnification. A bench magnifier can help you prep the board and check your work, but it cannot replace the optics of a microscope for BGA alignment and inspection.
If you only do through-hole and large SMD, a 5-diopter lamp covers your needs. If you do dense SMD regularly, invest in an 8-diopter or higher station now to avoid upgrading in six months.
Budget vs quality trade-offs
Under $30 buys you a competent helping-hands station with a basic magnifier. The lens may be acrylic, the magnification may be modest, and the LEDs may flicker, but the basic functionality is there. These kits are great for beginners and backup use.
The $30 to $70 range is where real glass lenses and better LEDs appear. The SainSmart 5X and HITTI 10X are in this range and they are noticeably better than the budget kits. For most hobbyists, this price range is the sweet spot.
Above $70, you are paying for larger bases, integrated hot air gun holders, higher diopter lenses, and brand reputation. The NOEVSBIG and MagnieOpti sit here. If you use your bench daily, the extra durability is worth the cost.
Above $150 puts you in stereo microscope territory. If you can spend that much, a stereo microscope is a better long-term investment than any bench magnifier, regardless of how good the optics are.
Frequently Asked Questions
What are the best magnifying glasses for electronic work?
The best magnifiers for electronics combine a real glass lens, adjustable LED lighting, and stable mounting. For most soldering and inspection tasks, 5-diopter (2.25X) glass lenses from the SainSmart 5X station, HITTI 10X lamp, and Dylviw 5-diopter desk lamp are the strongest general-purpose picks. For finer SMD work above 0603, step up to 8 or 12 diopters, or use a stereo microscope.
How much magnification do I need for SMD soldering?
For 0805 and larger SMD parts, 5 diopters (2.25X) is enough. For 0603 and 0402 work, you want 8 to 12 diopters (3X to 4X) and a working distance of 3 to 5 inches. For BGA and chip-scale packages, no bench magnifier is sufficient — you need a stereo microscope with 7X to 45X magnification.
Which is better, 3 diopter or 5 diopter?
3 diopter gives you about 1.75X magnification with about 13 inches of working distance. 5 diopter gives you 2.25X with about 8 inches of working distance. For soldering and inspection, 5 diopter is the better choice because you can fit a soldering iron tip under the lens. 3 diopter is useful only for very large workpieces or as a general-purpose reading lamp.
What are the disadvantages of using a magnifier?
Bench magnifiers introduce working distance limitations — higher magnification means less room for tools. The advertised magnification numbers are often inflated compared to the real angular magnification. Cheap acrylic lenses introduce chromatic distortion that can hide trace detail. Magnifiers also take up bench space, and swing-arm magnifiers can sag over time, requiring you to re-tighten the joints.
What is the best magnifying light for electronics?
The best magnifying lights for electronics combine high-CRI LED panels (CRI 90+), adjustable color temperature (3000K to 6000K), and real glass lenses. The HITTI 10X lamp and Dylviw 5-diopter desk lamp are both strong choices in the under-$50 range. For combo stations with built-in helping hands, the SainSmart 5X station offers the same quality optics with extra functionality.
Final Verdict
After 8 weeks of testing, the bench magnifier for circuit board work that won the most consistent praise in our shop was the SainSmart Magnetic Helping Hands station with its 5X real glass magnifier. It is the only unit in this roundup that combined a heavy-duty base, real glass optics, 4 magnetic arms, and 3 color temperatures at a price that does not break the bank.
If you want a separate dedicated illuminating magnifier and already own helping hands, the HITTI 10X lamp gives you a 4.2-inch real glass lens with 1800 lumens and 3 color modes for under $45. For an ultra-budget entry point, the NEIKO 01902 with cast-iron base has earned its 15,000-plus reviews by being a simple, durable tool for basic electronics work.
Whatever you buy, pay attention to real magnification versus the advertised number, choose a real glass lens when you can, and pick a working distance that leaves room for your soldering iron tip. With those three rules, any of the 8 units in this roundup will improve your circuit board work for 2026 and many years beyond.
