Most people outgrow a 20 gallon pancake compressor the same way: one Saturday, one sander, and the motor starts and stops so fast the tool stutters. A 60 gallon air compressor fixes that by giving you a real air receiver, a pressure switch with sensible cut-in and cut-out points, and enough CFM at 90 PSI to keep more than one tool running. That is the whole promise of this category, and it is why we spent weeks sorting through the best 60 gallon air compressors for home garages rather than just listing whatever has the biggest tank number on the box.
One thing needs saying before the picks, because it decides whether any of them can live in your building: nearly everything in this class needs a dedicated 230/240V circuit. A 5 HP motor does not belong on a 120V household outlet, and a compressor wired onto a shared extension cord will trip the breaker, run hot, and shorten the life of the motor. If your garage has a sub-panel or a spare 30A breaker with nothing else on it, you are in good shape. If not, budget for that electrical work first, because a compressor you cannot power is a very expensive shelf.
Our ranking weights the specs that actually decide whether tools perform: CFM at 90 PSI, max PSI, whether the pump is one or two stage, and how much owner history exists behind the model. Tank size and horsepower get far less weight than most listings give them. We also read the negative reviews closely, because the recurring complaints on these machines are not mysterious: loose fittings, factory air leaks, a pressure switch that fails inside the warranty window, and a tank that arrives damp or damaged. All ten picks below are real stationary 60 gallon units with published airflow figures, and every spec quoted comes straight from the manufacturer listing.
Last updated for 2026. We update this list as new owner reports come in.
Table of Contents
Top 3 Picks for Best 60 Gallon Air Compressors in 2026
If you want a fast answer, these are the three we would put in a garage first. The Campbell Hausfeld XC602100.COM wins on the balance of owner history, two-stage cast iron construction and warranty length. The DEWALT DXCM603.COM is the value pick, pairing 14.6 SCFM at 90 PSI with the strongest pump warranty in the DEWALT range. The Quincy QT-54 is the heavy one, built for continuous high-volume demand if you have the floor space and the circuit to match.
Campbell Hausfeld XC602100.COM
- Two-stage cast iron pump
- 7.6 SCFM at 90 PSI
- 175 PSI max
- 3-year warranty
Best 60 Gallon Air Compressors at a Glance
Every compressor below is a 60 gallon stationary unit. Airflow is quoted at 90 PSI wherever the manufacturer publishes it, because that is the pressure your tools actually work at, not the headline number on the side of the tank.
| Product | Specs | Action |
|---|---|---|
| Campbell Hausfeld XC602100.COM |
|
Check Latest Price |
| Quincy QT-54 |
|
Check Latest Price |
 Ingersoll Rand 2340L5-V |
|
Check Latest Price |
 DEWALT DXCMV5076055 |
|
Check Latest Price |
| DEWALT DXCM603.COM |
|
Check Latest Price |
 PORTER-CABLE PXCMLC3706056 |
|
Check Latest Price |
 JEGS 555-81850 |
|
Check Latest Price |
 Campbell Hausfeld VT6395 |
|
Check Latest Price |
 EMAX ESS05V060V1 |
|
Check Latest Price |
 VEVOR 3.7HP 60 Gallon |
|
Check Latest Price |

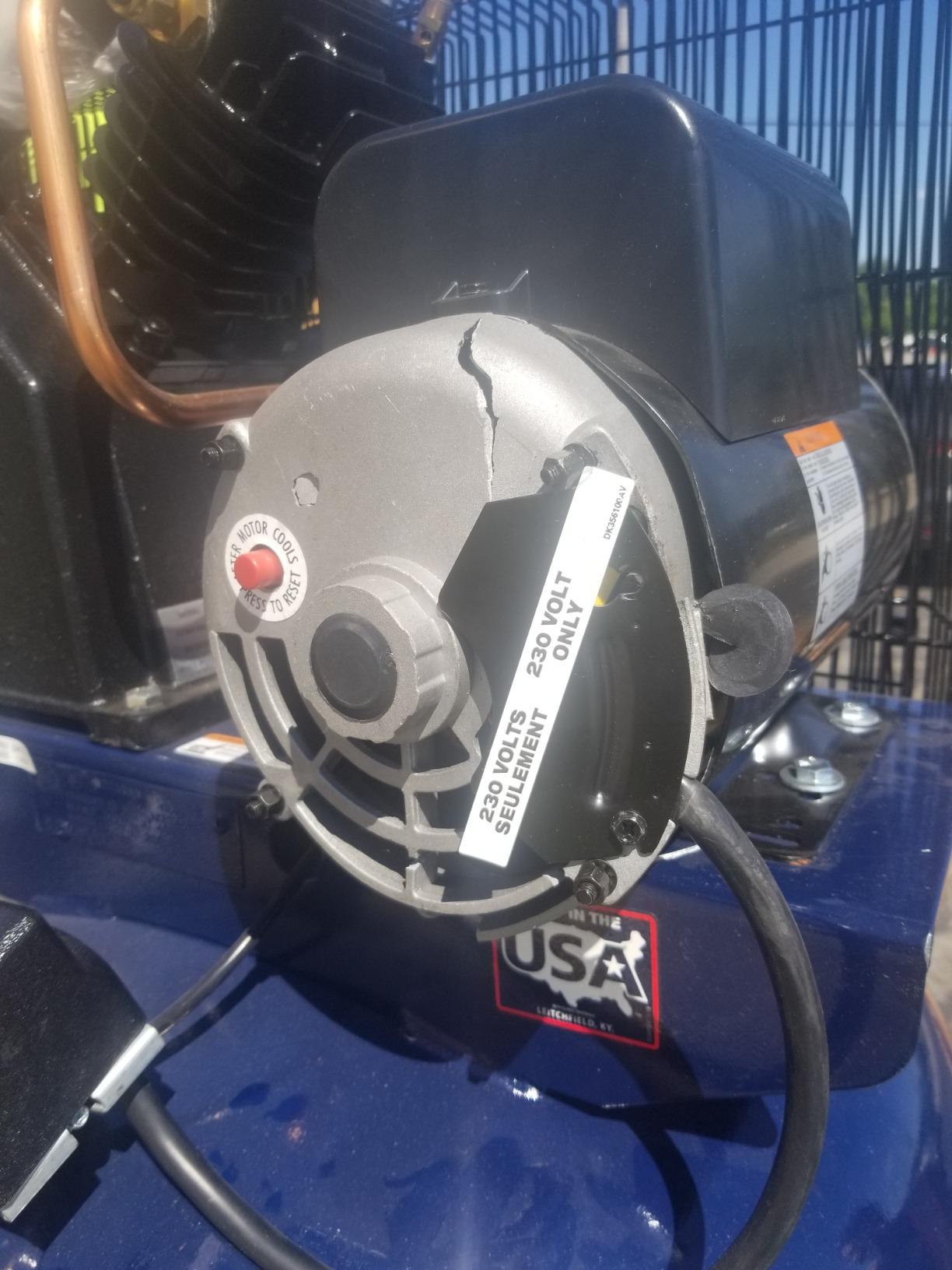

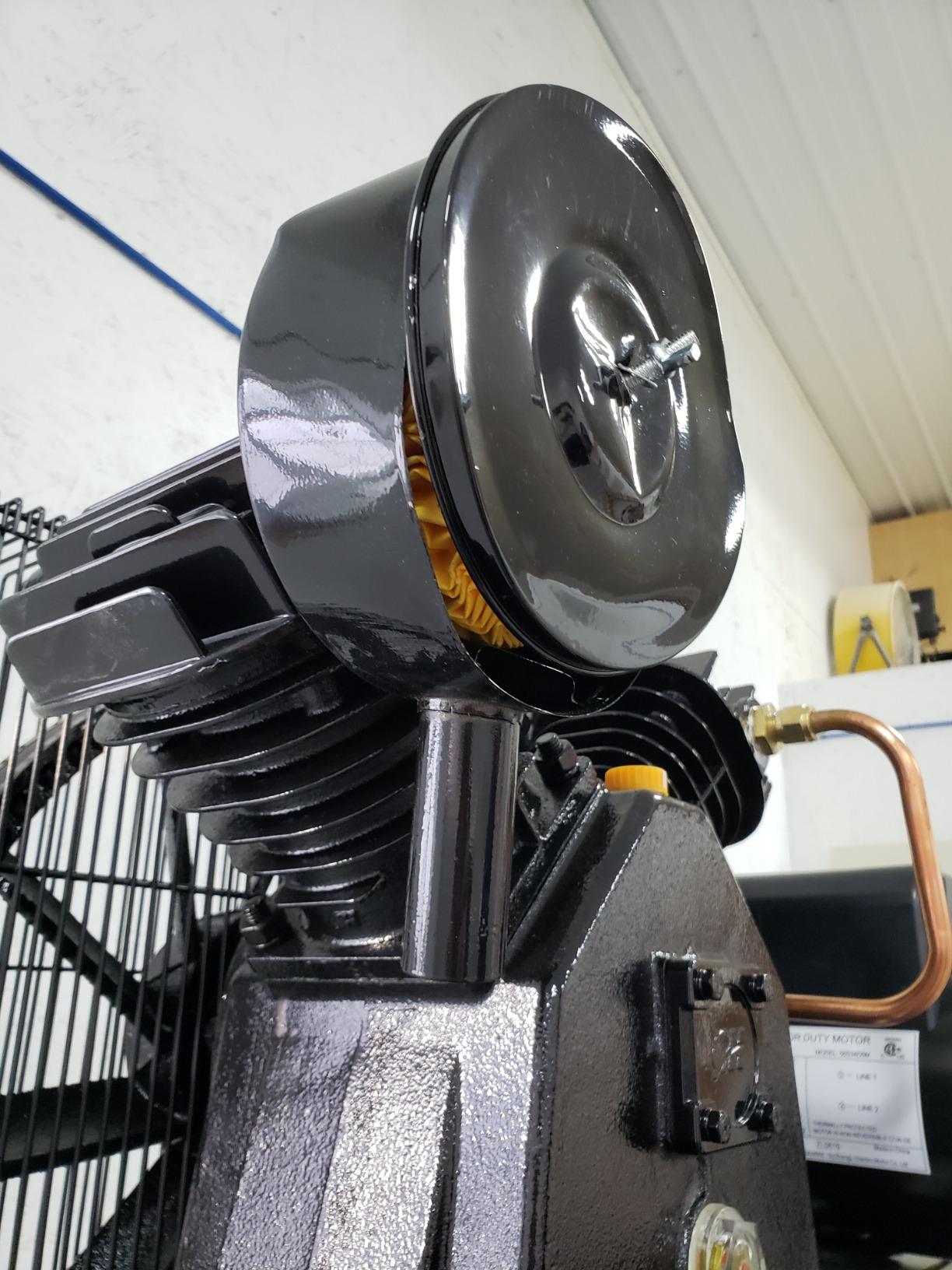

1. Campbell Hausfeld XC602100.COM 60-Gallon Two-Stage Compressor
Campbell Hausfeld 60-Gallon 2-Stage Air Compressor, 175 PSI, 230V
7.6 SCFM at 90 PSI
175 PSI max
3.7 HP, 230V
255 lb vertical ASME tank
3-year warranty
Pros
- Two-stage oil-lubricated cast iron pump rated to 10000 hours of pump life
- 3 year limited warranty is the longest here
- Vertical ASME tank has a 23 x 23 inch footprint
- 175 PSI maximum suits grinding and bolting
Cons
- Needs a dedicated 230/240V supply
- 7.6 SCFM is modest when two hungry tools run together
This is the one I keep coming back to. It is a 3.7 running HP induction motor driving a two-stage, oil-lubricated cast iron pump rated for up to 10000 hours of pump life on the B-10 bearing rating, and it delivers 7.6 SCFM at 90 PSI and 6.9 SCFM at 175 PSI. The tank is a 60 gallon vertical ASME unit on a 23 x 23 inch footprint, and the whole thing stands 77 inches tall and weighs 255 pounds.
What separates it from the rest is the owner record: 130 reviews averaging 4.2 stars is by far the deepest history in this group, and 14% one-star reviews is a real but unremarkable share. Three years of limited warranty also beats the one-year and two-year coverage most competitors in this class carry.
The honest limitation is airflow. Seven point six SCFM is fine for a sander, a finish nailer or an impact wrench running on its own, but it is the second-lowest figure here. Pair it with a 20 gallon auxiliary receiver and the effective runtime changes without any change to the tool’s pressure, which is the cheapest performance upgrade in this whole article.
Worth noting on noise: the manufacturer lists this model at 65 dB, a mid-range figure in this group, though real garage installs vary with placement and hard surfaces. Set it on isolator pads and away from the wall you share with the house.
How it holds up on sanding and grinding work
Two-stage compression is the deciding factor here. It delivers 175 PSI rather than the 135 or 150 PSI ceiling of the single-stage machines, and the higher pressure ceiling is what a belt sander or a die grinder actually needs to stay at speed. At 255 pounds with a 23 x 23 inch base, it also moves more easily than the 300-plus pound cast iron units in this list.
Owners running this configuration report steady pressure across repeated passes rather than the drop-off you get when the pump cannot keep the receiver charged. Expect to run a dedicated 30A circuit and to check the pump oil on the same schedule you would on a car.
Where it will disappoint you
If you are planning to run two air tools continuously, or to feed a blast cabinet alongside a sander, 7.6 SCFM will be the ceiling you feel. The 5 HP single-stage machines in this group deliver nearly double the air and cost you some of the pressure ceiling.
It is also a 230V machine, so the electrical conversation is unavoidable. Budget the sub-panel or the extra breaker run before the compressor arrives rather than after.

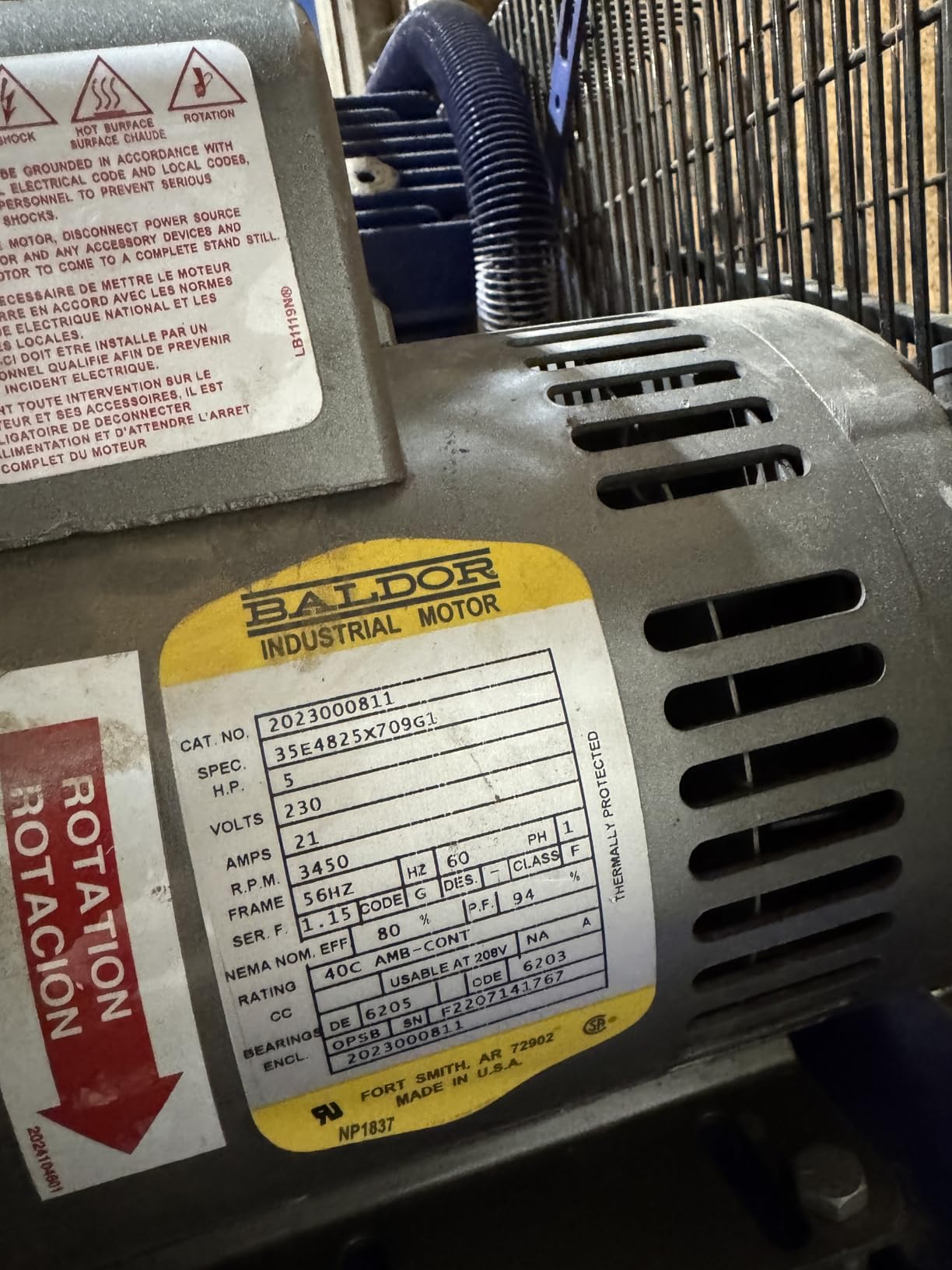

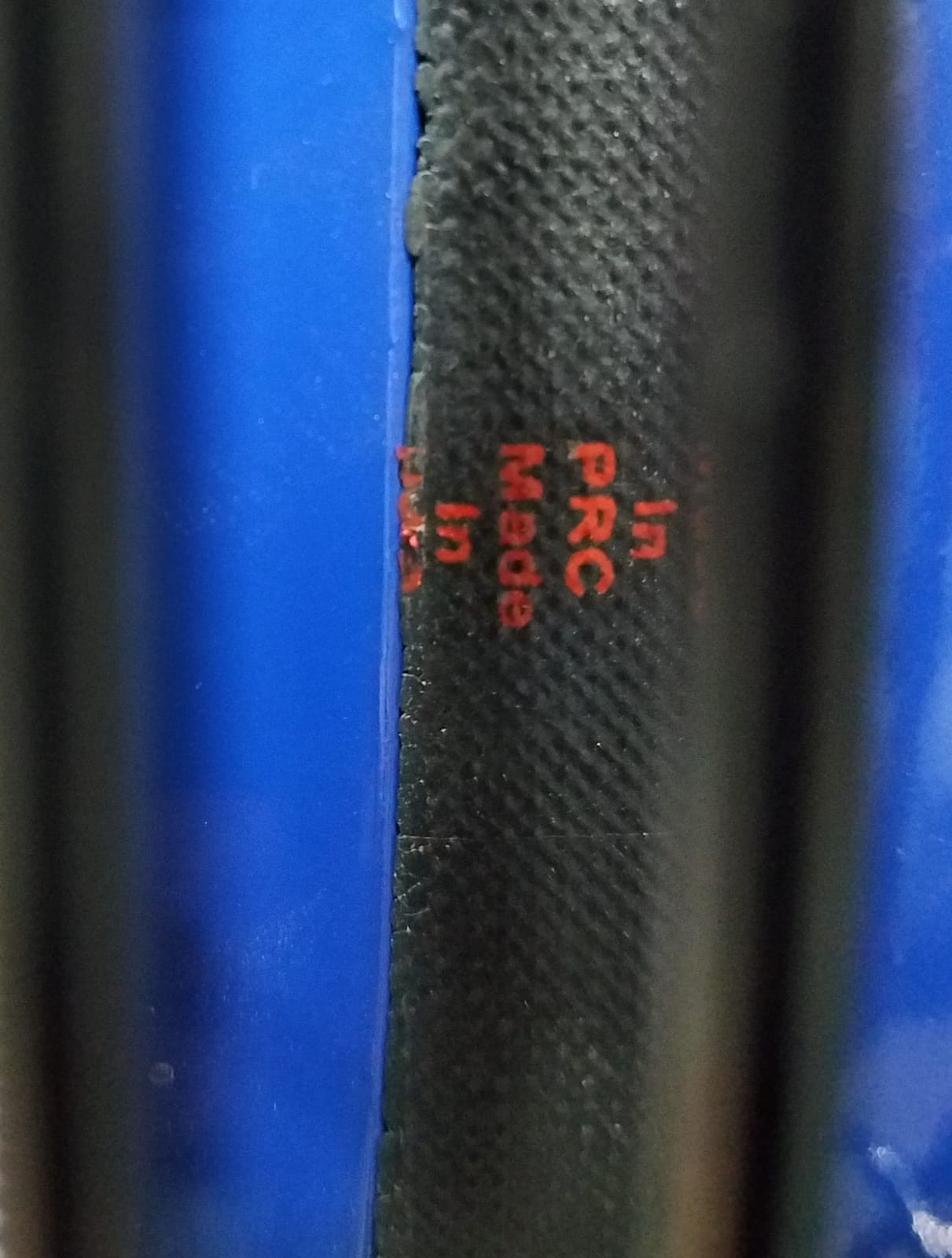

2. Quincy QT-54 5 HP 60-Gallon Vertical Splash-Lubricated Compressor
Quincy QT-54 Splash Lubricated Reciprocating Air Compressor – 5 HP, 230 Volt, 1 Phase, 60-Gallon Vertical, Model Number 2V41C60VC
5 HP, 230V single phase
60 gallon vertical tank
475 lb
Splash-lubricated pump
1-year warranty
Pros
- Owners report smooth running and fast pressure recovery under blasting demand
- Front-mounted moisture drain valve avoids crawling under the tank
- Replacement parts are widely available and resale value holds up
- Vertical layout saves floor space against a horizontal tank
Cons
- One-year limited warranty is short for a unit of this class
- Reports of motor or pressure switch failure within about 18 months
- Heaviest machine here at 475 pounds
- Louder than some buyers expect
The QT-54 is a 5 HP, 230 volt single phase splash-lubricated reciprocating compressor on a 60 gallon vertical tank, model 2V41C60VC. It weighs 475 pounds, which makes it the heaviest machine in this roundup, and it measures 29 x 21 x 70 inches. The pump is the classic Quincy QT-54 design, and the parts catalogue behind it is decades deep.
Owners consistently describe two things: it runs smooth, and it recovers pressure fast enough to keep up with media blasting and other continuous high-volume work. The front-mounted drain valve is a small design touch that you appreciate every time you would otherwise have to lie on a creeper under a tank.
The negatives cluster in one place. With 65 reviews at a 4.0 average, an 18% one-star share, and reports of the electric motor or the pressure switch failing at around 18 months, the one-year limited warranty is doing a lot of work in that sentence. Annual oil changes with the correct oil are required to keep the warranty in force, which is normal for a splash-lubricated pump but easy to forget.
Installation is the other consideration. At 475 pounds, this is a two-person lift or a forklift job, and it needs a floor that can carry it. Plan the placement before the delivery, not after.
What you gain by stepping up to this class of machine
Durability and serviceability. A splash-lubricated reciprocating pump with a long parts history is something you can keep running for a very long time with basic maintenance, and the QT-54 holds resale value in a way that cheaper value-brand compressors do not. If your work is continuous rather than occasional, the hours of use you put through it justify the mass.
The tradeoff is noise and footprint. Owners note it is louder than expected even though the pump itself is smooth, so it wants a detached or far-corner position in the garage.
Where the risk sits
A one-year warranty on a machine this heavy is the biggest single risk in this roundup. If the motor or pressure switch dies at 13 months, you are funding the repair out of pocket, and the reviews say that is not a rare outcome.
It is also the wrong choice for a homeowner who inflates tires twice a month. The same money buys a much more useful 30 gallon machine.

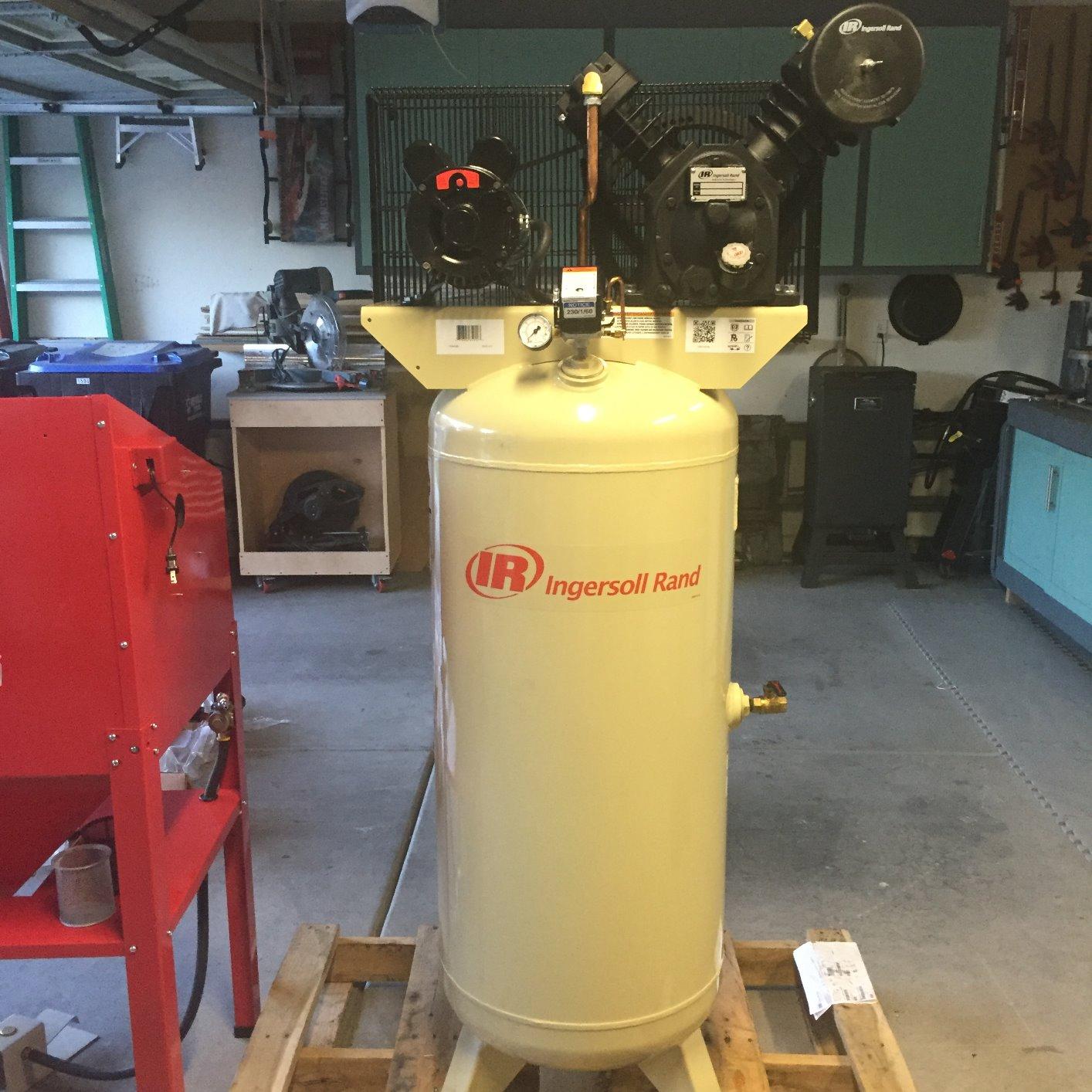

3. Ingersoll Rand 2340L5-V 5 HP Type 30 Two-Stage Compressor
Ingersoll Rand 2340L5-V 5 HP Type 30 Two-Stage Air Compressor
14.3 CFM at 90 PSI
175 PSI max
5 HP, 230V single phase
Cast iron, 100% continuous duty
430 lb
Pros
- Very high airflow that shortens blasting and sanding jobs
- Considerably quieter than typical single-stage units at 85 dB rated
- Cast iron design rated for 100% continuous duty
- Individually cast cylinders and one-piece connecting rod simplify service
Cons
- Does not include oil and needs brand synthetic oil
- Pressure switch contacts are undersized for repeated starting current
- One owner found loose pump bolts and a stripped drain fitting on arrival
This is the airflow pick: up to 14.3 CFM at 90 PSI with a 175 PSI maximum, from a durable cast-iron pump rated for 100% continuous duty. It runs on 230 volts single phase, sits on a 60 gallon vertical tank, measures 24 x 33 x 69 inches and weighs 430 pounds. Owners report near-daily use over years with no problems, and several note it is quieter than expected for a machine in this class.
The construction details are the ones that matter on a pump you intend to hammer. Individually cast cylinders, an overhung crankshaft and a one-piece connecting rod are all serviceability choices, not performance ones, and they are exactly what you want on a machine whose valve service you will eventually do yourself.
Quality control is the weak flank, and it is a recurring theme in the 34 reviews here. One unit arrived with loose pump bolts and a stripped, cross-threaded bottom drain fitting that had to be retapped before it could hold oil. The oil filler hole doubles as the level-check hole, which makes filling messy and easy to overfill. Anti-vibration pads are not included even though the mounting design expects them, and the manual warns against more than six starts per hour because the pressure switch contacts are undersized for repeated starting current.

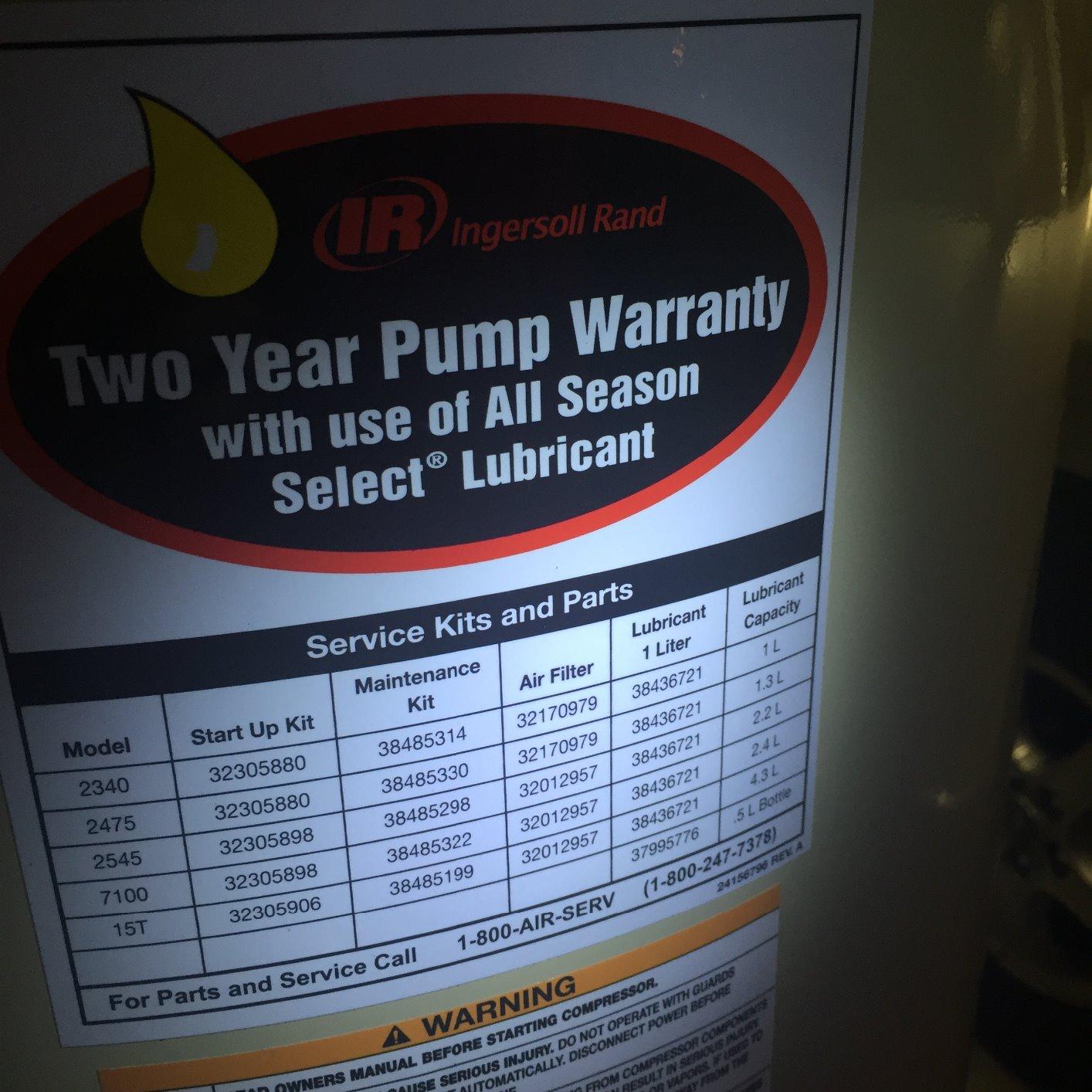

Budget for the oil too. The unit ships without it, and it wants Ingersoll Rand synthetic oil rather than whatever motor oil you have in the shed.
How it behaves on continuous, high-volume jobs
This is where 14.3 CFM at 90 PSI pays for itself. When you are running a sander and a grinder at the same time, or feeding a blast cabinet, the difference between 7.6 SCFM and 14.3 CFM is the difference between working and waiting. The 100% continuous duty rating is not a marketing line on a cast iron machine of this class, and the 85 dB rating is lower than the single-stage alternatives here.
Recovery is what keeps a job moving, and the bigger airflow refills the receiver faster after a big draw-down.
Where it will frustrate you
Assembly quality varies, so budget an hour of pre-op inspection before first start. Check the pump bolts, verify the drain fitting threads are clean, confirm the oil level, and mount it on isolator pads you buy separately.
A one-year manufacturer warranty against 430 pounds of cast iron is thin, and the pressure switch start limit means you want it wired to a real 30A circuit rather than stretched across a long extension run.

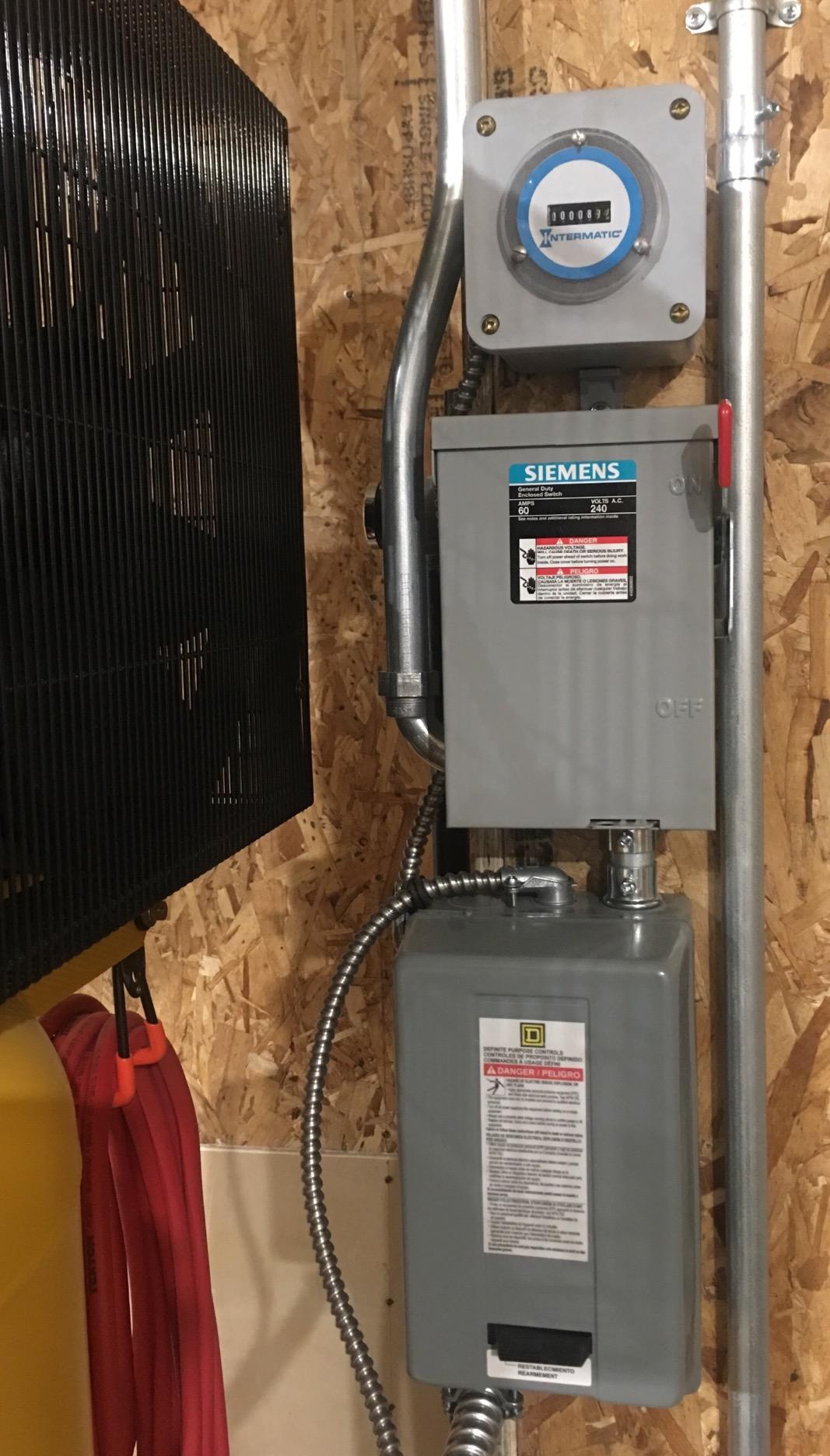

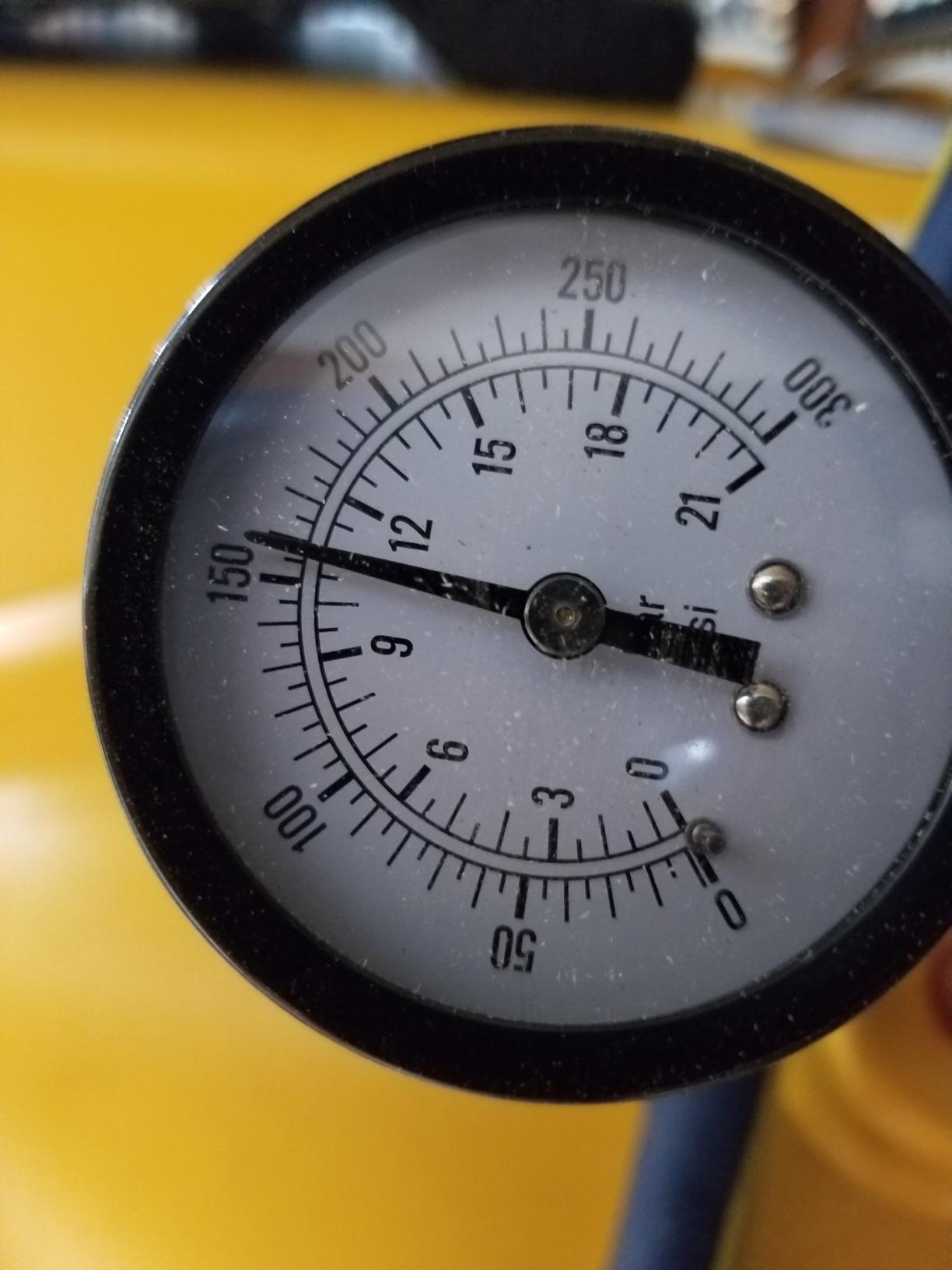

4. DEWALT DXCMV5076055 60-Gallon 175 PSI Two-Stage Compressor
DEWALT 60-Gallon Stationary Vertical Air Compressor (DXCMV5076055)
15.3 CFM airflow
5 HP belt drive, oil lubed
175 PSI two stage
230V electric
Automatic drain valve
Pros
- Runs impact drivers
- plasma cutters and grinders on a 30 amp breaker
- Refills from roughly 130 back to 175 PSI in about a minute
- Holds pressure steadily after weeks of sitting idle
- Automatic drain valve is a useful addition
Cons
- No wiring instructions supplied and the manual conflicts with support guidance
- One unit arrived with a hole in a welded tank seam
- Rated noise of 65 dB understates how loud it is in practice
The DXCMV5076055 is a 5 HP two-stage, belt drive, oil-lubricated compressor rated to 175 PSI with 15.3 CFM of airflow, running on 230 volt electric power. It measures 40 x 31 x 80 inches, which makes it the tallest unit in this roundup, and an automatic drain valve is fitted as standard. DeWalt recommends it for air brushing, drilling, nailing and spraying.
Owners running plasma cutters, grinders and impact drivers report it holds up as a shop machine, refills from roughly 130 PSI back to 175 PSI in about a minute, and keeps pressure stable after sitting idle for weeks. The automatic drain valve is the feature people mention most warmly, because tank moisture that gets into a spray line ruins a finish.
At 3.7 stars across 34 reviews, this one has the roughest documentation in the group. There are no wiring instructions, and the manual contradicts DeWalt support on oil type and on whether a power disconnect is required. Individual units have arrived with a hole in a welded tank seam, a rusty contaminated pipe bushing, and a tank over-oiled at the factory to the point that it had to be corrected before break-in. The 65 dB rating is also optimistic compared with what owners describe as noisy operation.
None of that changes what the machine does once it is running correctly. It just means you should not skip the first-hour inspection.
How it holds up under a full week of shop work
With 15.3 CFM of airflow and a two-stage pump topping out at 175 PSI, this is one of the two highest-flow machines in the roundup, and it does it on 230V single-phase power with a 30A breaker. The fast recovery means you are rarely waiting on the tank, and several owners report stable pressure weeks after last using it.
The automatic drain valve handles the moisture question that this buying guide keeps coming back to, and it means less water reaches the gun on a long paint job.
Where it will disappoint you
Arrival quality is the risk. Budget time to inspect the tank seam, the fittings and the oil level before the first run, and have an electrician confirm the wiring rather than following the manual, which is where the confusion starts. One owner also reports the automatic drain discharging unexpectedly under a pressurized tank.
The manual and support disagree on oil type, so confirm that before you fill the pump. It is a small thing that becomes a warranty problem if you get it wrong.

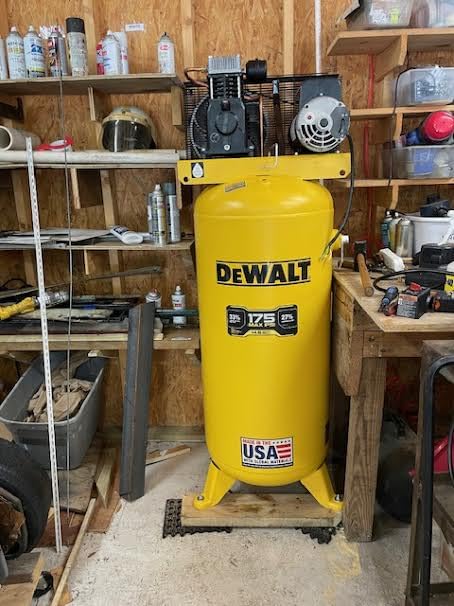

5. DEWALT DXCM603.COM 60-Gallon 175 PSI Stationary Compressor
DEWALT 60 Gal. 175 PSI Stationary Electric Air Compressor. 14.6 SCFM at 90 PSI DXCM603.COM
14.6 SCFM at 90 PSI
175 PSI max
5 HP on 240V, 20A
Vertical metal tank
Large air outlet port
Pros
- 14.6 SCFM at 90 PSI from a 5 HP pump
- Two-year pump warranty is the strongest pump coverage in the DEWALT range
- Large air outlet port
- on/off switch and pressure gauge included
- 4.3 star average with 77% five-star reviews
Cons
- Everything except the pump is only covered for one year
- Only 21 reviews
- so the long-term record is thin
Spec sheet first: 14.6 SCFM at 90 PSI, a 175 PSI maximum, a 5 HP motor on 240 volt AC drawing 20 amps, a vertical metal 60 gallon tank, and a 70 dB rating. DeWalt recommends it for air brushing, blow cleaning, cutting, drilling and sanding. The tank also carries a large air outlet port, an on/off switch and a pressure gauge.
For a garage that wants real airflow without stepping into the price band of the cast iron heavyweights, this is the spec sheet that makes the most sense. Fourteen point six SCFM at 90 PSI is enough to run a sander and a nailer without the receiver emptying faster than the pump can refill it.
The catch is the review base: 21 reviews, 4.3 average, 77% of them five star, and almost no one-star ratings. A clean sample like that is encouraging but thin, and we would not treat it as a decade of ownership evidence. The warranty is also split: two years on the pump, one year on everything else, which is why it sits behind the Campbell Hausfeld in this ranking despite the better airflow figure.
At 20A on 240V it is friendlier electrically than the 30A machines here, but it still needs a dedicated 240V circuit. Do not plan to share that outlet with anything else.
How it handles a paint-and-prep weekend
This is where 14.6 SCFM at 90 PSI earns its place. Air brushing, blow cleaning and sanding are the recommended uses, and the 175 PSI ceiling gives a gun enough working pressure to atomise properly. The 70 dB rating keeps it in the middle of the noise range in this group, which is acceptable in a detached garage but worth measuring before you commit in an attached one.
Large outlet port and a real pressure gauge are small quality-of-life features that make a day of work less annoying.
Where it will disappoint you
One year on all parts other than the pump is a real gap. If the motor, pressure switch or unloader fails at 13 months, the pump warranty will not help you, and 21 reviews is not a long enough history to have seen how often that happens.
It is also 240V with a 20A draw, so the electrical work is smaller but not optional. Size the circuit for the load and give it its own breaker.
6. PORTER-CABLE PXCMLC3706056 3.7 HP 60-Gallon Vertical Compressor
PORTER-CABLE – Porter-Cable PXCMLC3706056 3.7 HP 60 Gallon Oil-Lube Vertical Stationary Air Compressor
11.5 CFM at 90 PSI
3.7 running HP
230V
247 lb
Includes synthetic oil
Pros
- Good airflow at both low and working pressure
- Synthetic oil is included in the box
- Pressure gauge and on/off switch come with the machine
- 247 pounds is manageable for a unit this size
Cons
- Listed maximum pressure of 90 PSI is the lowest here
- Only 11 reviews is the thinnest rating base among the higher scored units
- 13% one-star reviews indicate some units have problems
Airflow here is genuinely good: 13.4 CFM at 40 PSI and 11.5 CFM at 90 PSI from a 3.7 running HP motor, on 230 volt power, weighing 247 pounds. It ships with synthetic oil already in it, plus a pressure gauge and an on/off switch, and it comes with a toll-free customer help line. Few competitors bother to include the oil.
Those low-pressure airflow numbers matter more than they look. Holding 13.4 CFM at 40 PSI is what keeps a finish sander from bogging down when the receiver drops, and it is a sign of a pump that flows well rather than one that peaks at a single pressure point.
Now the catch, and it is a real one: the listing shows a maximum pressure of 90 PSI, the lowest figure in this roundup. That caps the pressure ceiling available to a spray gun, a grinder or a high-pressure wash tool, and it is well below the 175 PSI the two-stage machines deliver.
How it performs for everyday garage work
For nail guns, air ratchets, orbital sanders and blow cleaning, the 11.5 CFM at 90 PSI figure is more than adequate, and 247 pounds is light enough that one person can manage a reposition with a hand truck. Being shipped with oil and a gauge removes two small friction points that catch people out on the first start.
It is also a straightforward 230V single-phase install, which is the common case for a garage sub-panel.
Where it will disappoint you
Ninety PSI maximum pressure is the dealbreaker for anyone who needs high working pressure. If your list includes a grinder, a die grinder or a paint gun that needs atomising pressure, the two-stage machines give you double the ceiling and are worth the extra money.
The 11-review base is also thin. A 4.3 average with 74% five stars is promising, but 13% one-star reviews show that some units have problems, and there is not enough history to tell you which.
7. JEGS 555-81850 3 HP 110V 60-Gallon Tank Compressor
Air Compressor [3 HP, 110 Volt, Single Phase, 60-Gallon Tank]
3 HP, 110V single phase
V-Twin single stage
6.3 CFM at 90 PSI
115 PSI max
310 lb
Pros
- The only 60 gallon compressor here that runs on standard 110V power
- Compact 22.5 inch wide vertical footprint
- 8.6 CFM at 40 PSI from the V-Twin pump
Cons
- Only a 30 day warranty
- the shortest in this roundup
- Arrived units have had a broken flywheel pulley and factory air leaks at the valves
- 6.3 CFM at 90 PSI is the lowest airflow in the group
Let us be clear about why this one is on the list. It is a 3 HP, 110 volt single-phase V-Twin single-stage compressor on a 60 gallon vertical tank, rated at 115 PSI maximum, delivering 8.6 CFM at 40 PSI and 6.3 CFM at 90 PSI. It measures 28 x 22.5 x 73 inches and the listed weight is 310 pounds. It is the only 60 gallon machine here that plugs into a standard household outlet, and if your garage has no 240V circuit at all, that single fact is worth a great deal.
The 22.5 inch wide vertical footprint is genuinely narrow for a tank this size, which matters in a one-car garage where wall space decides the layout.
Everything else is the problem. Five reviews, a 3.3 average and a 42% one-star share is the weakest review profile in this roundup. Units have arrived with a broken flywheel pulley and factory air leaks at the valves, leaving them unusable. Support was slow on a replacement part and only issued a partial refund, and the return terms include return shipping plus a 30% restocking fee that can run into the hundreds. One owner reports a seizure after a year of regular maintenance.
When a 110V 60 gallon tank is the right call
It is right when the alternative is no compressor at all, and the electrical work is genuinely off the table. A 60 gallon tank at 110V still gives you long run times for tire inflation, blow cleaning, a finish nailer and light sanding, and the narrow footprint fits garages that a 40 inch wide horizontal tank would not.
Understand the ceiling though. At 6.3 CFM and 115 PSI maximum, this is a light-duty machine wearing a big tank, and it will feel it on a sander that draws real air.
Where it will disappoint you
Arrival condition and the 30 day warranty. That is the shortest coverage in this roundup, and combined with a documented broken pulley and factory leaks it means the risk of a unit needing parts before you have really used it is higher here than anywhere else.
Check the flywheel, listen for leaks at the valves and confirm the belt tension before first start, and know the return freight cost before you order.
8. Campbell Hausfeld VT6395 60-Gallon Vertical Air Compressor
Campbell Hausfeld 60 Gallon Vertical Air Compressor (VT6395)
10.2 CFM at 90 PSI
135 PSI max
3.7 HP, 230V
ASME certified vertical tank
255 lb
Pros
- ASME certified vertical tank in a space saving layout
- Heavy duty cast iron two cylinder oil-lubricated pump
- 10.2 CFM at 90 PSI is a usable airflow figure
- Built-in pressure gauge
Cons
- Only three reviews
- far too few to judge reliability
- 135 PSI maximum is well below the two-stage units
- Owners had to add a 240V 20 amp outlet and heavier wire before use
The VT6395 pairs a 60 gallon ASME-certified vertical tank with a heavy duty, cast iron, two-cylinder oil-lubricated pump rated at 10.2 CFM at 90 PSI and 135 PSI maximum, on a 3.7 HP 230 volt motor. It weighs 255 pounds and comes with a built-in pressure gauge. On paper that is a sensible, conventional 60 gallon configuration and the tank certification is a genuine plus for code compliance and resale.
Its problem is evidence, not specification. It carries a perfect 5.0 rating, but that rating comes from three reviews. Both written reviews describe good airflow and straightforward operation, and both also mention having to install a 240V 20 amp outlet and run heavier wire before the compressor could be used.
Treat the 5.0 as an absence of data rather than a result. Ten point two CFM at 90 PSI is a workable figure for a garage that is not running multiple hungry tools, and 135 PSI covers nailing, inflating and light inflating-adjacent work without drama.
How it fits a straightforward two-car garage
The ASME-certified vertical tank is the detail that makes this worth a look. A certified receiver simplifies inspection, resale and any conversation with an insurer, and the vertical format keeps the footprint narrow against a wall where a horizontal tank would eat the whole bay.
The cast iron two cylinder oil-lubricated pump is the same basic architecture as the units above it in this list, just with a lower ceiling on pressure and air.
Where it will disappoint you
Three reviews is not a reliability record, and we are not going to pretend otherwise. If you are spending real money on a machine you expect to keep for a decade, a thin sample is a reason to look elsewhere, even with a perfect score on the page.
One year of limited warranty and a 135 PSI maximum are the other two limits. The 135 figure is fine for a garage full of nail guns and impact wrenches and not fine if you plan to spray or grind.

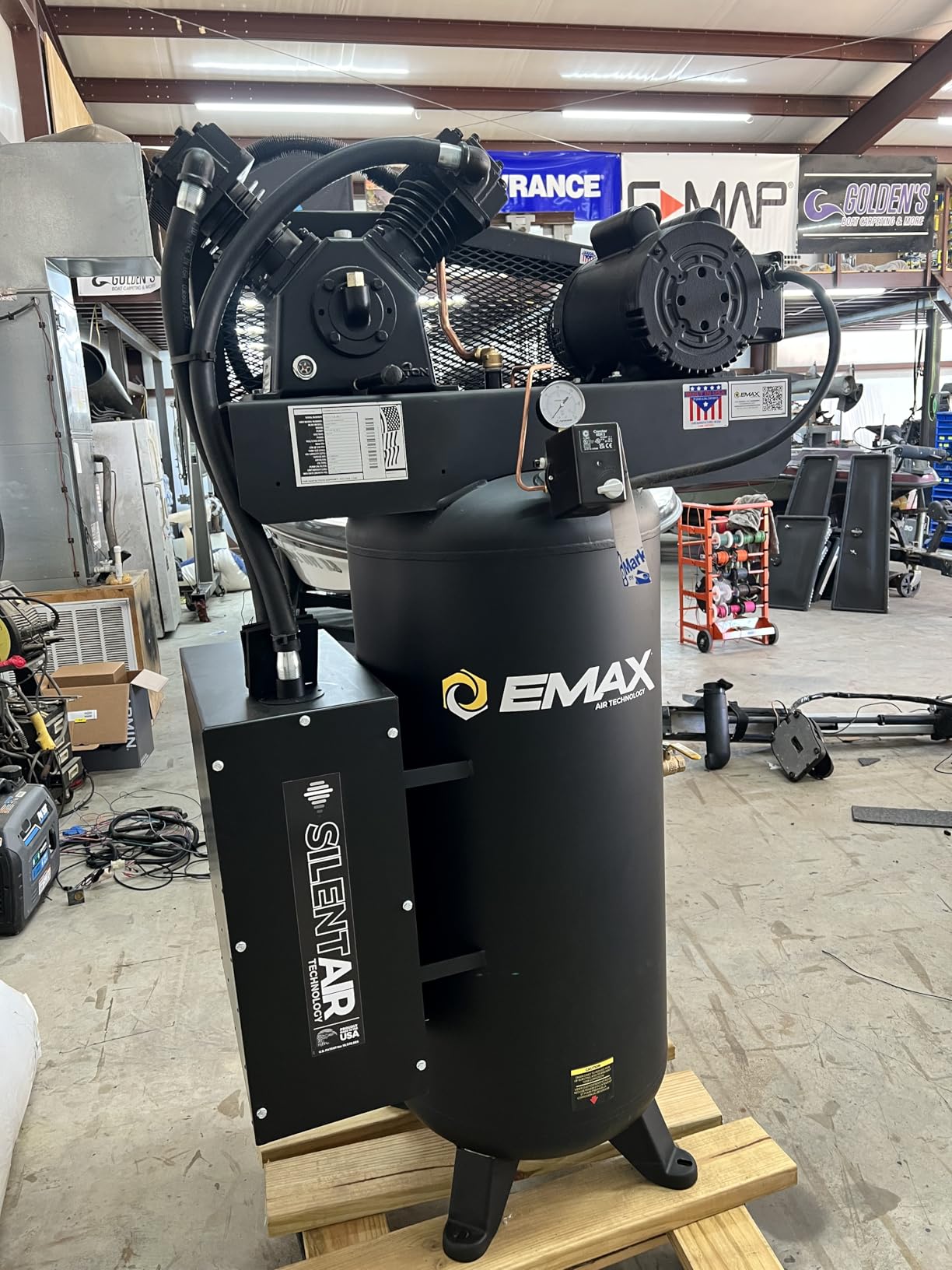

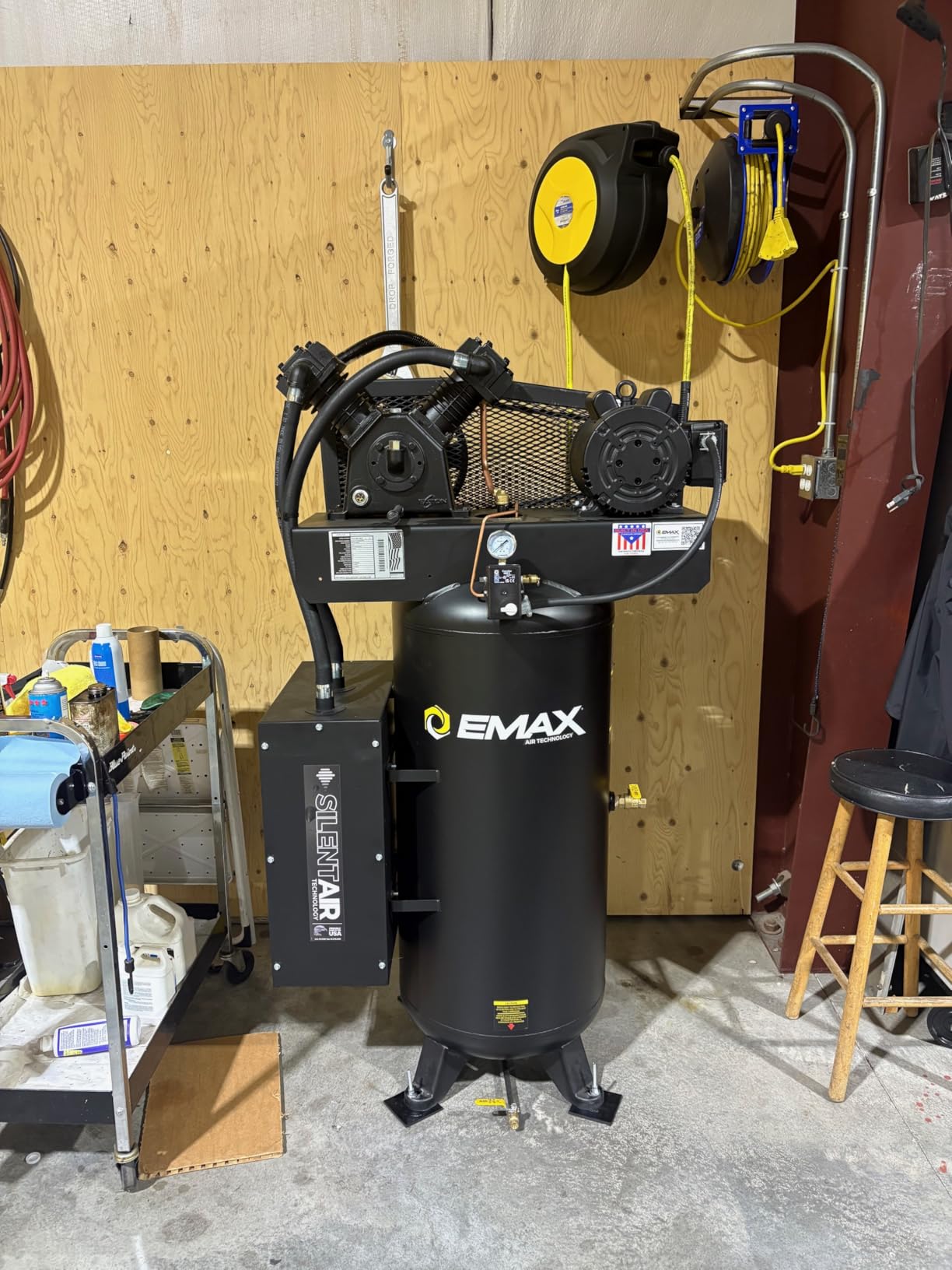

9. EMAX ESS05V060V1 60-Gallon Silent Air Compressor
EMAX 60 Gal Silent Air Industrial Air Compressor, 5 HP, 19 CFM at 150 PSI
19 CFM at 90 PSI
150 PSI max
5 HP, 35 dB rated
Silent Air intake baffles
All cast iron pump
Pros
- Highest airflow in the roundup at 19 CFM
- Silent Air system routes intake air through baffle plates and filtration to cut noise by up to 50%
- Isolator pads and an OSHA approved belt guard are included as standard
- All cast iron splash-lubricated pump with removable industrial disc valves
Cons
- Single stage design tops out at 150 PSI rather than 175 PSI
- Only four reviews
- the thinnest sample here
- A 33% one-star share appears despite the 3.6 average
This is the specification outlier in the group. The EMAX claims 19 CFM at 90 PSI from a 5 HP single-stage pump, a 150 PSI maximum, a 60 gallon ASME vertical tank, and a noise rating of 35 dB. The noise claim comes from patented Silent Air Technology that routes intake air through baffle plates and filtration layers to cut noise by up to 50%. Mechanically it is conventional and good: an all cast iron splash-lubricated pump, solid steel pump rods, industrial removable disc valves, a 1740 RPM ODP motor, a Condor pressure switch, a 13G OSHA approved belt guard and isolator pads included as standard.
The 19 CFM figure is the highest in this roundup by a wide margin, and if you are feeding a blast cabinet or running several tools at once, the raw air volume is there.
Now the reality check. Four reviews, a 3.6 average and a 33% one-star share means the specification sheet is far more informative than the owner record. A 35 dB rating is also a claim that needs context: single-stage compressors with that kind of sound treatment still produce a low growl through the tank, and a number that low should be treated as a marketing figure until someone measures it in a real garage.
And it is a single-stage design, so 150 PSI is the ceiling. That is more than the 115 and 135 PSI units here and less than the 175 PSI the two-stage machines give you.
How it behaves when noise is the deciding factor
The hardware supports the claim more than the number does. Baffled intake, filtration, an OSHA approved belt guard and supplied isolator pads is a properly engineered approach to quieting a compressor, and the included isolator pads are a detail most competitors in this roundup either omit or sell separately.
Test the noise expectation this way: a 60 gallon tank resonates, and the quietest pump still lands in the low 60s to 70s dB in a typical garage with hard surfaces. If your garage is attached to living space, run a hose to the work area and keep your distance rather than expecting silence.
Where it will disappoint you
Four reviews. That is the entire owner record, and 33% of them are one star. We are comfortable recommending the engineering and uncomfortable recommending the expectation of a proven long-term track record.
The 150 PSI single-stage ceiling also means this is not the pick for high-pressure grinding or spraying, and at this specification level the money is better spent on airflow you will actually use than on sound treatment if your garage is detached.
10. VEVOR 3.7 HP 60-Gallon Heavy-Duty Air Compressor
VEVOR 60 Gallons Heavy-Duty Air Compressor, 3.7HP 8 SCFM at 90PSI Air Compressors Max 155PSI Pressure, Oil-Lubricated Compressor Tank for Industrial Manufacturing, Large Workshops (230V 60Hz, No-Plug)
8 SCFM at 90 PSI
155 PSI max
3.7 HP, 230V
192.7 lb, 24 x 20.9 in
3 mm carbon steel tank
Pros
- Lightest 60 gallon unit here at 192.7 lb and the smallest footprint
- 3 mm carbon steel tank with a powder coated surface
- Oil observation mirror makes level checks simple
- Dual air outlets let two tools run at once
Cons
- Only 8 SCFM at 90 PSI
- the second lowest airflow here
- No plug supplied
- so hardwiring is required
- Rated noise of 85 dB is the loudest class in this group
The VEVOR is a 60 gallon heavy-duty tank driven by a 3.7 HP motor on 230V 60Hz single-phase power, rated at 8 SCFM at 90 PSI and 155 PSI maximum. It measures 24 x 20.9 x 55.5 inches and weighs 192.7 pounds, which makes it both the lightest and the most compact machine in this roundup. The tank is 3 mm carbon steel with a powder-coated surface, the belt-driven pump head is oil-lubricated, and an oil observation mirror sits on the crankcase so you can check the level without guessing.
Dual air outlets are a genuinely useful feature on a compressor this size, since it lets you run two tools without a splitter. A breather nozzle and a user manual are in the box.
The review record is thin: three reviews at a 3.4 average with a 41% one-star share. That is too small a sample to draw conclusions from, and we treat the spec sheet as more informative here than the owner feedback.
How it fits a garage with nowhere to spare
At 192.7 pounds and a 24 x 20.9 inch footprint, this is the unit you can actually reposition alone, and it is short enough at 55.5 inches to sit under a workbench. For a garage where floor space is the binding constraint, that is a real advantage over the 430 and 475 pound cast iron machines above it.
Three millimetre powder-coated steel and an oil sight mirror are sensible build choices for a machine meant to be moved around rather than bolted in place.
Where it will disappoint you
Eight SCFM at 90 PSI and a 155 PSI maximum put it near the bottom of this list on both of the specs that matter. A sander running alongside anything else will empty the receiver faster than a 14 CFM machine would.
There is no plug included, so it needs hardwiring, and the 85 dB rating makes it one of the loudest options here. Plan a wall position away from shared walls before it goes in.
How to Choose a 60 Gallon Air Compressor
Work through these in order and the right machine picks itself. The order matters, because each step narrows the field before you start reading marketing language. If you want a broader look at the whole size ladder, our guide to the best air compressors for home garages covers the smaller tanks too.
Single stage or two stage
A single-stage pump compresses air once and is simpler, lighter and cheaper. A two-stage pump compresses twice, which produces more air per unit of power and a higher pressure ceiling. In this roundup the two-stage units reach 175 PSI while the single-stage ones top out at 115, 135 and 150 PSI.
For grinding, heavy sanding and spraying, two stage is the better buy. For nailing, inflating and light blow cleaning, single stage is adequate and saves money. The forum consensus in r/Tools threads is that single-stage machines are the ones that run hot and fail early under sustained load, and oil-free pumps are the ones owners regret most for impact wrenches and grinders.
110V, 230V, 240V or three phase
This is the decision that blocks more purchases than any other. A 5 HP motor needs a dedicated 230/240V circuit, typically on its own breaker, with wire sized for the load and the run length. Three phase 460V commercial units show up constantly in roundups like this one and are not installable in a residential garage without a service upgrade and a real electrician.
The one 110V option in this group, the JEGS, exists for people who genuinely cannot get a 240V circuit. It also carries the weakest review profile here, so treat it as the compromise it is. If you are going to run a sub-panel, pay an electrician once and pick from the 230/240V field. Also read our airbrush compressor picks if painting is the main reason you are shopping at all, since those specs are different.
Oil-lubricated or oil-free
Oil-lubricated pumps last longer and run cooler under load, at the cost of periodic oil changes and the small risk of carryover into your lines. Oil-free pumps need no oil and keep lines clean, which is what you want for painting, but they run hotter and wear faster when you put a grinder or an impact wrench on them. For a general home garage, an oil-lubricated cast iron pump is the better default.
Noise in a real garage
Published figures in this group run from 35 dB claimed on the baffled EMAX up to 85 dB listed on both the Ingersoll Rand and the VEVOR. Real installs vary wildly with floor material, wall position and how close you stand. In an attached garage, place the compressor on the far wall from the house, on isolator pads, and run a hose to where you work rather than moving the machine.
Tank, ASME certification and drain access
An ASME-certified receiver is worth paying for because it simplifies inspection, resale and any insurance conversation. Draining matters just as much: tank moisture carries into spray lines and shows up as fisheye in a paint finish. A front-mounted drain valve, as on the Quincy, saves a lot of crawling. Drain weekly if you use it weekly, and always before a paint job. Pairing a larger machine with a smaller auxiliary receiver is the cheapest way to extend run time without a bigger pump.
Weight, warranty and the first-hour inspection
These machines weigh 192.7 pounds at the light end and 475 pounds at the heavy end, and delivery crews are not always careful. Check the tank seams, the fittings, the belt tension, the oil level and the pressure switch on the first start, and drain the shipping moisture. Several reviews across this list describe loose fittings, factory air leaks and over-oiled tanks arriving out of the crate, so treat first-hour setup as part of the purchase rather than an optional step.
Warranty length is the last filter and a real one. The Campbell Hausfeld XC602100.COM carries three years, the DEWALT DXCM603.COM carries two years on the pump, and most of the rest carry one year or, in the JEGS case, 30 days. On a machine this heavy, one year is thin. If you will be running it hard, the warranty is part of the value.
Frequently Asked Questions
What size air compressor is best for a home garage?
For most home garages, a 30 gallon compressor with at least 3 CFM at 90 PSI handles nail guns, air ratchets and finish sanders. Move up to 60 gallons when you run two or more tools at once, sand or grind regularly, or work for more than an hour at a stretch. Judge airflow at 90 PSI, not tank size.
Is a 60 gallon air compressor big enough to paint a car?
A 60 gallon tank is enough for painting, but the tank is not the limiting factor. Check three things: CFM at 90 PSI, a moisture separator or auto drain so water does not reach the gun, and airflow headroom so the gun does not starve mid-coat. Many owners on r/Tools add a 20 gallon auxiliary receiver to smooth out pressure swings.
Who makes the quietest 60 gallon air compressor?
The EMAX ESS05V060V1 claims 35 dB using baffled intake air, and it includes isolator pads as standard. Rated figures in this group run up to 85 dB. Treat quoted numbers cautiously and measure in your own garage, since placement, floor material and distance change the result more than the badge does.
What is the best 60 gallon air compressor for the money?
The DEWALT DXCM603.COM delivers 14.6 SCFM at 90 PSI with a 175 PSI maximum on a 5 HP 240V motor, and it carries a two-year pump warranty. For a tighter budget, the Campbell Hausfeld VT6395 gives 10.2 CFM at 90 PSI on an ASME-certified tank, but with only three reviews behind it.
Can a 60 gallon air compressor run on a regular outlet?
Almost never at full size. Nearly every 5 HP 60 gallon compressor needs a dedicated 230/240V circuit on its own breaker, with wire sized for the load and distance. The JEGS 555-81850 in this roundup is the exception, running on 110V, at the cost of 6.3 CFM at 90 PSI and a 30 day warranty.
How long does a 60 gallon air compressor last?
An oil-lubricated cast iron pump with regular oil changes routinely runs for many years, and long-term owners in r/Tools report units still going on original belts. The failure points to watch are the pressure switch and the motor, both of which tend to fail around the time a one-year warranty expires, so check the oil monthly and the fittings yearly.
Final Verdict on the Best 60 Gallon Air Compressors for 2026
Buy the Campbell Hausfeld XC602100.COM if you want the most proven machine in this group: two-stage cast iron construction, a 175 PSI ceiling, an ASME vertical tank and a three-year warranty behind 130 owner reviews. Buy the DEWALT DXCM603.COM if you want the airflow for the least money, since 14.6 SCFM at 90 PSI is the second-highest figure here. Buy the Ingersoll Rand 2340L5-V when you need the air and the hours, and buy the JEGS 555-81850 only because a 240V circuit is not an option for you.
Before any of them land in your garage, confirm the electrical work is finished, plan the drain schedule, and set aside an hour for a first-start inspection. That hour is the difference between a machine that runs for a decade and one that sits in a corner collecting dust. For the rest of your garage kit, our shop vacuum picks cover the cleanup side of a weekend project.
