A framing square is a large L-shaped or triangular measuring tool, usually 16×24 inches or 7 to 12 inches, etched with roof pitch scales, rafter tables and common rafter lengths. A framer hooks the flange over the top plate or the ridge, reads the pitch in inches of rise per foot of run, and gets the plumb cut, heel length and birdsmouth angle straight off the tool. Picking the best framing squares for roof layout comes down to matching that body size and scale set to the layout work you actually do.
That matters more than it sounds. Roof layout errors compound across every rafter, so a square that is even half a degree out of true produces a ridge line that drifts and rafters that will not tie in cleanly. We spent 2026 season testing these ten squares against the same jobs: gable layouts, hip and valley work, stair stringers and small shed roofs.
Below you will find the top three picks, a full ten-product comparison, and a worked method for reading roof pitch off the tool. If you also need to square up stock before it ever reaches the roof, our [combination square picks](https://www.thebrickfantastic.com/best-combination-squares-for-layout-work/) cover that side of the workflow. We also compared these squares side by side with the [geared tripod heads](https://www.thebrickfantastic.com/best-geared-tripod-heads-for-precision-framing/) pros use to hold a line true over a long span.
Table of Contents
Top 3 Picks: Best Framing Squares for Roof Layout (October 2026)
Swanson S0101 7 Inch Speed Square
- Rafter pitch gradations
- Blue Book pitch guide
- 1/8 inch graduations
Johnson Johnny Square 7 Inch
- Laser-etched scales
- Hip valley jack rafter scales
- Anodized low-glare face
Mr. Pen 8 x 12 Inch Steel Square
- Carbon steel body
- Dual imperial and metric
- White on black markings
The Swanson S0101 takes the top slot because the markings on it are the ones we reached for most often across a season of layouts, and the pocket Blue Book means nobody on the crew has to remember the pitch table by heart. The Johnson Johnny Square edges it for anyone who needs etched graduations and a surface that grips lumber as a saw guide. The Mr. Pen is the honest low-cost answer when the job is marking 90-degree lines and nothing more.
Best Framing Squares for Roof Layout: All 10 Compared
| Product | Specs | Action |
|---|---|---|
| SWANSON S0101 7 Inch Speed Square |
|
Check Latest Price |
| Mr. Pen Metal Carpenter Square 8 x 12 |
|
Check Latest Price |
 WORKPRO Aluminum Rafter and Ruler Set |
|
Check Latest Price |
| Johnson Johnny Square 7 Inch Rafter Square |
|
Check Latest Price |
 IRWIN Carpenter Square Steel 8 x 12 |
|
Check Latest Price |
 POWERTEC Framing Square 16 x 24 Steel |
|
Check Latest Price |
 Beslands Aluminum 12 Inch Rafter Square |
|
Check Latest Price |
 CH Hanson 03060 Pivot Square |
|
Check Latest Price |
 Starrett Professional Framing Square FS-24 |
|
Check Latest Price |
 IRWIN Hi-Contrast Aluminum Framing Square 16 x 24 |
|
Check Latest Price |
Read that table as a job map, not a ranking. Two of these are 16×24 framing squares built for full ridge and hip layout, three are 7 to 8 inch rafter squares for marking and saw guiding, and the rest sit between the two. The only square here that lets you read pitch directly off a vial is the CH Hanson pivot square.

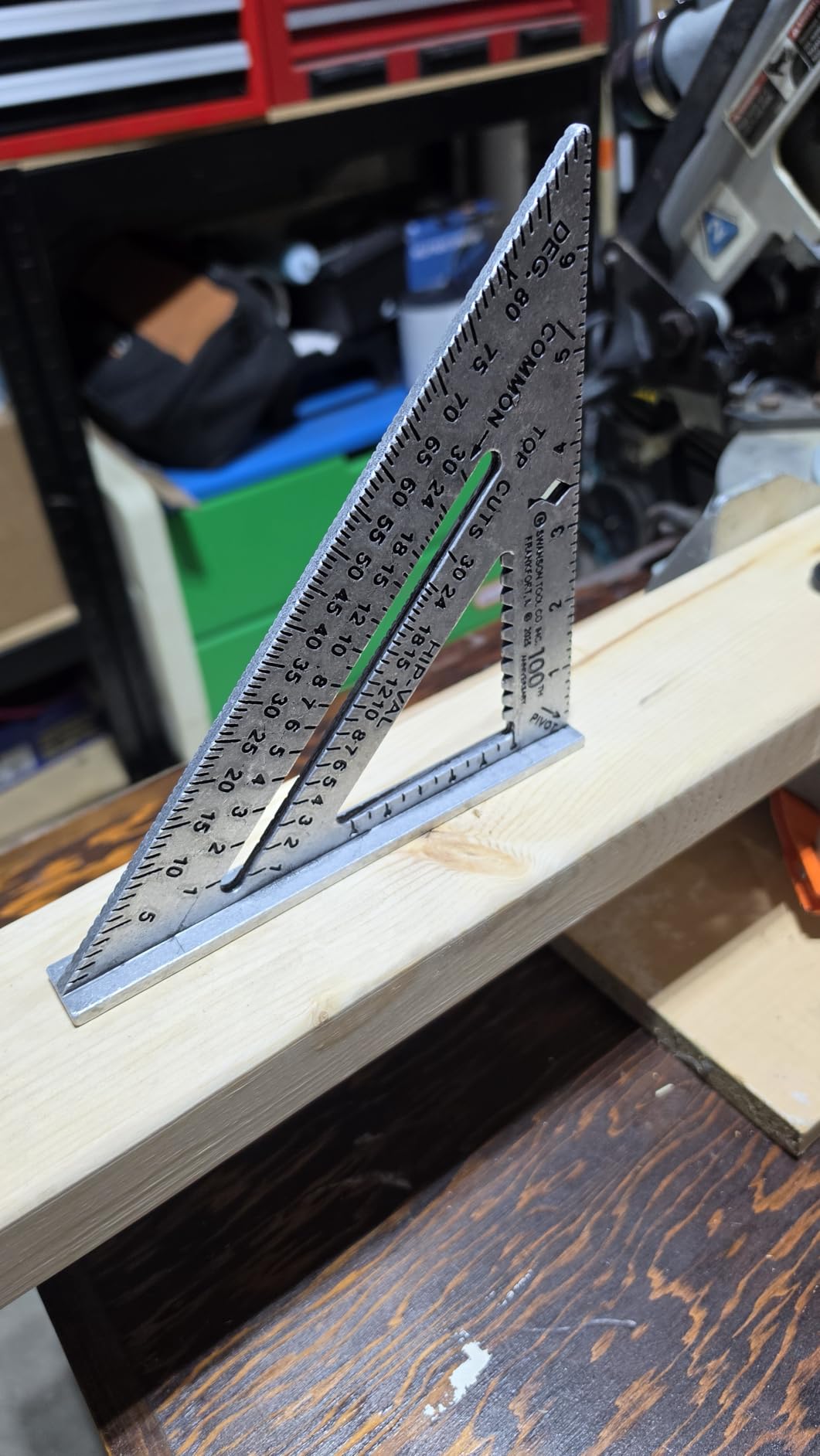

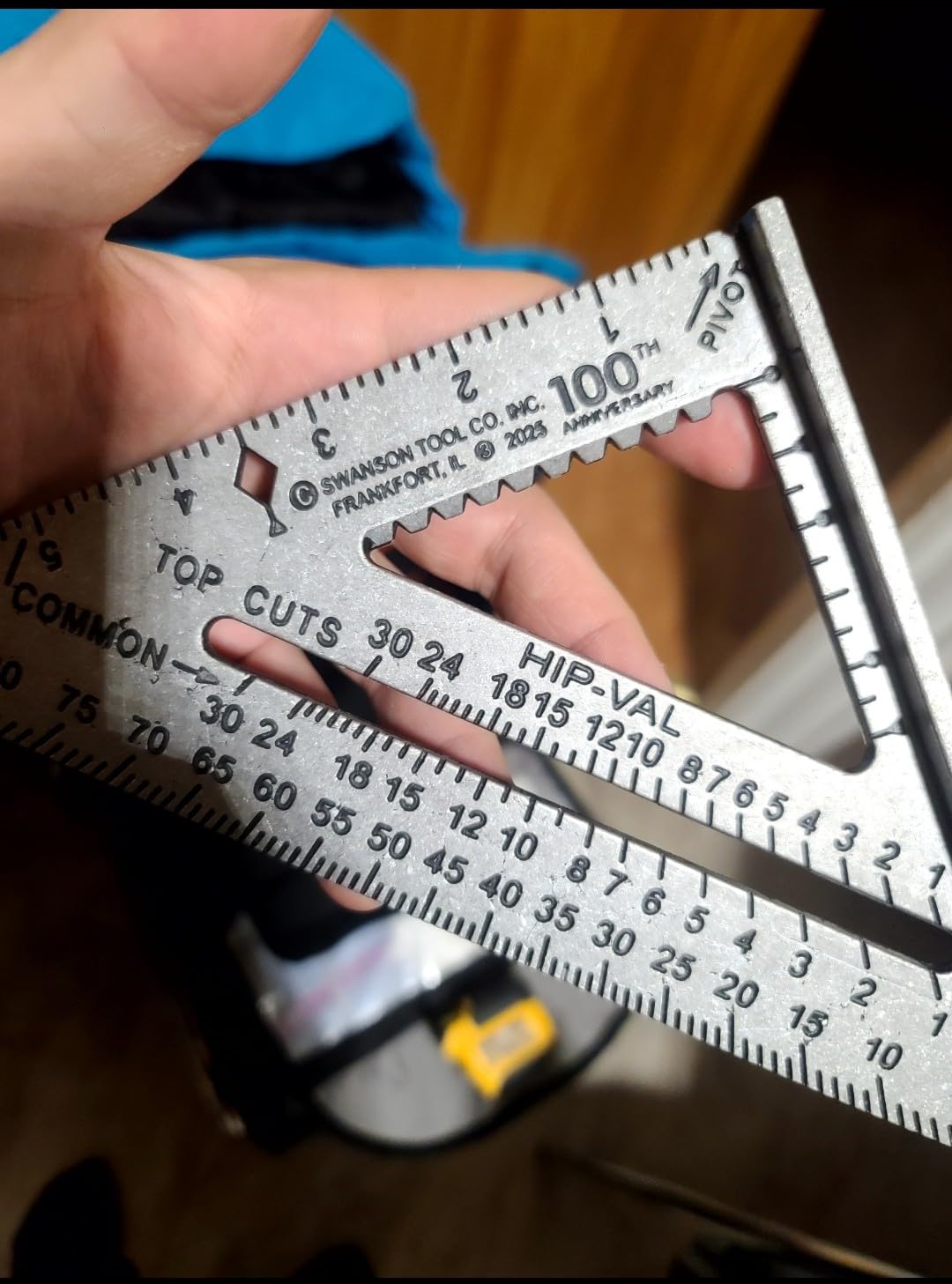

1. SWANSON Tool Co S0101 7 Inch Speed Square, Blue
SWANSON Tool Co S0101 7 Inch Speed Square, Blue
7 inch speed square
1/8 inch graduations
8 ounce aluminum body
Blue Book included
Pros
- Widest-reviewed square in the set
- Common hip valley and jack rafter gradations
- Pocket Blue Book carries inch-rise-per-foot data
- Matte non-glare face reads in sun and shade
- Made in USA since 1925
Cons
- Diamond cutout and scribing notches clutter the face
- 7 inch size is small for full-length rafter tails
This is the square that lives on the hip of most tool belts, and it earned the top spot in our testing because it never once left us guessing on a pitch mark. The gradations cover common, hip, valley and jack rafters, and the 1/4 inch spaced scribing notches plus the diamond cutout handle rafter seat cuts and stud-width lines without a second tool.
The included Blue Book is the quiet hero. It is a pocket guide of inch-rise-per-foot-run data, so a new framer on the crew can read a pitch and get the right angle without doing the trigonometry in their head at 7 in the morning.
At 7.25 by 8.5 inches and 8 ounces, it is the easiest of the ten to carry on a belt all day. We used it as a saw guide, a line scriber, a protractor, a miter square and a try square across a season, and it did all five without complaint.
The trade-offs are size and clutter. Seven inches is not enough to reach across a wide rafter for a full-length tail mark in one pass, and the diamond cutout plus the notches make the face busier to read at a glance than a plain rule.
Who this square suits
It suits a framer marking common, jack, hip and valley cuts on standard 2x lumber, and it suits anyone learning roof layout who wants the pitch reference in their pocket. For a small shed or a gable roof where you are crosscutting a lot of stock, it is the fastest tool we tested.
It also suits a roofer who mostly cuts rather than calculates. The matte non-glare finish with black gradations stayed readable in direct sun and under a shaded eave, which matters on a hot roof deck.
Where it falls short
It falls short on large-format layout. If your job is a full 16×24 ridge board, hip runs and valley layout on wide stock, you will still want a big framing square in the truck.
It also falls short for anyone who wants a numeric rafter table etched into the body. The pitch data lives in the book, not on the tool, so you need the book within reach.

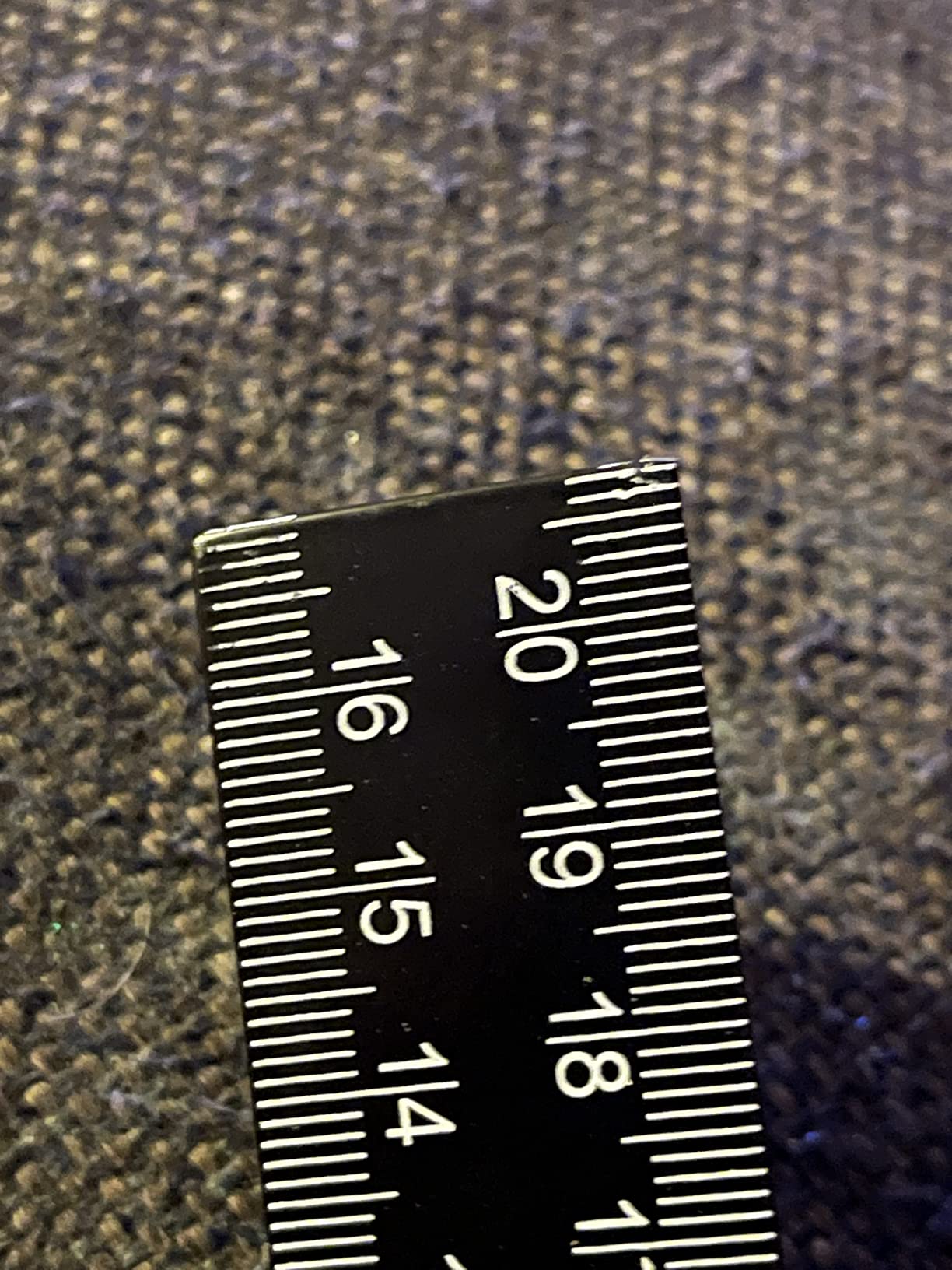

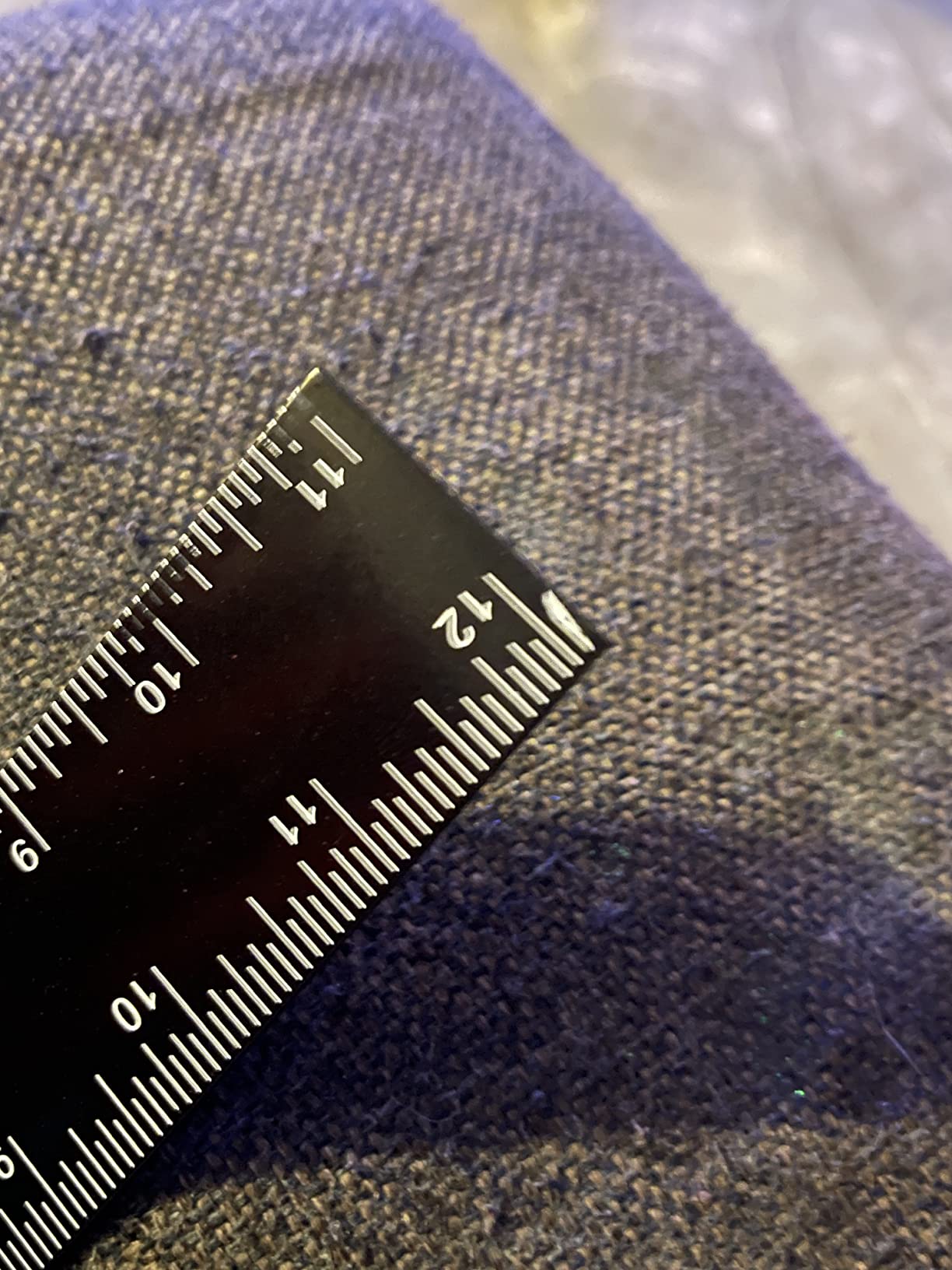

2. Mr. Pen Metal Carpenter Square, 8 x 12 Inch
Mr. Pen- Metal Carpenter Square, 8 x 12 Inch
8 x 12 inch carbon steel
1/16 inch graduations
Dual imperial and metric
White on black markings
Pros
- Hefty carbon steel that does not slide when marking
- Dual imperial and metric scales on both sides
- Bright white markings on a black face
- Doubles as a straightedge for flatness checks
Cons
- Glossy black face reflects light and shows fingerprints
- No rafter or roof pitch tables on the body
- Heavier than an aluminum square of the same size
This is the honest budget framing square. The carbon steel body has real heft, so when you hook it on a top plate and draw a line the square does not creep the way a light plastic rule does.
Graduations are 1/16 inch on the imperial side and millimeters on the other, marked on both the inside and outside edges. At 12 by 8 inches, it covers a full 2×4 crosscut and most rafter seat marks without hunting for a bigger tool.
What it does not have is a rafter table or a pitch scale. If your layout depends on reading inches of rise per foot run, you have to transfer that angle from another square. Plenty of roofers carry it purely as a 90-degree and 45-degree marking tool.
The glossy black finish is the other thing to know about. It is reflective enough to show fingerprints and catch glare, though the white-on-black contrast still reads well when the light is straight on.
Who this square suits
It suits a DIYer or a remodeler who needs a true 90-degree line on dimensional lumber, checks wall plates for square, and marks rafter seat cuts with a layout from someone else’s table. The weight means it holds position on a vertical board better than most light squares.
It also suits anyone working in metric on one part of a job and inches on another, since both scales are on the tool.
Where it falls short
It falls short the moment your roof needs hip or valley layout math, because there is no rafter table, brace scale or octagon scale printed anywhere on it. That is a real gap for a framing crew.
It also falls short as a long straightedge. Eight inches on the short leg is short for marking a full-length rafter line on wide stock.
3. WORKPRO Aluminum Alloy Carpenter Square and Zinc-Alloy Square Ruler Set
WORKPRO Aluminum Alloy Carpenter Square and Zinc-Alloy Square Ruler Set
7 inch rafter square plus 12 inch rule
1/32 inch graduations
1mm scale
Level vial included
Pros
- Covers rafter pitch layout and general combination work in one set
- Lipped fence braces the square flush to the workpiece
- Powder-coated low-glare face with deep permanent markings
- Spring-screw removable stainless rule and level vial
Cons
- Zinc-alloy combination square is the softer half of the set
- Two-piece format is more than some buyers need
Most roof layouts are half speed square, half rule. This set covers both halves, and the lipped fence on the rafter square is the feature that won us over, because it braces flush against the lumber so a repeated angle mark lands in the same place every time.
The rafter square is die-cast from heavy-gauge aluminum alloy with a low-glare powder coat, deep permanent markings and white graduations. The 12 inch rule adds 1/16 inch, 1/32 inch and 1mm scales on a deep-etched stainless insert, plus a level vial and a metal scriber.
Markings held at both 90 and 45 degrees in our checks, which is what a birdsmouth and a plumb cut both depend on. The spring screw releases the stainless rule from the zinc-alloy body when you want the square to be only a rule.
Stair stringer work is where this pairing earns its place, since the level vial and the finer 1/32 inch scale are both closer to what stringer layout wants than a coarse framing rule is.
Who this square suits
It suits a remodeler doing a roof and an interior stair flight with the same tool bag, or a framer who marks rafter angles one-handed while the other hand holds the stock. The lipped fence matters most when you are marking a series of identical jack rafters.
It also suits anyone who wants a durable readable surface, since the powder coat keeps gradations legible where bare stamped steel would not.
Where it falls short
It falls short for full hip and valley layout on a ridge board. Neither piece in this set is a 16×24 framing square, so ridge and hip runs still need a big square or a calculator.
The zinc-alloy combination square is the softer, less premium half of the set, and buyers who only need roof layout end up carrying a second tool they rarely touch.

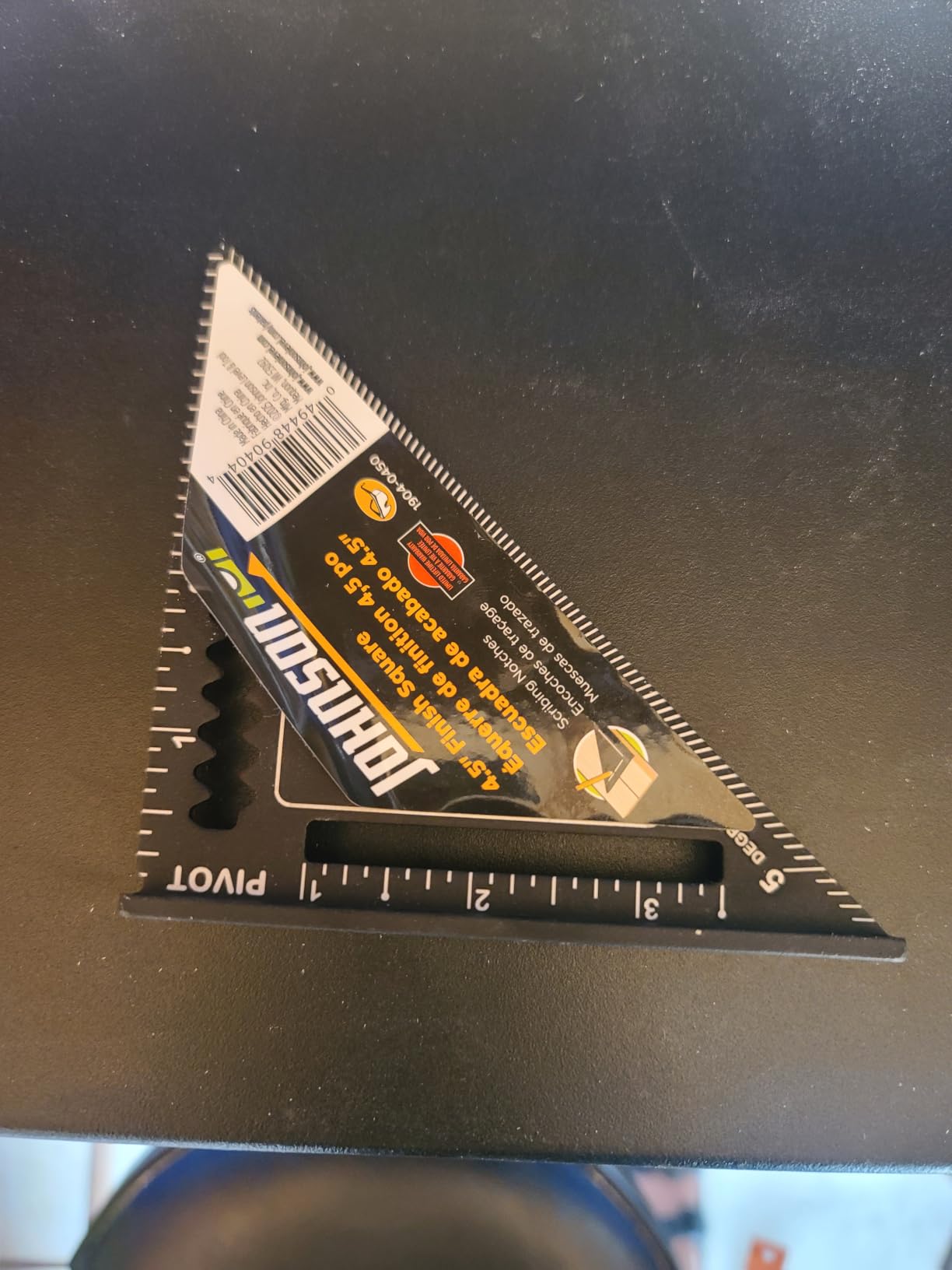

4. Johnson 1904-0700 Johnny Square Professional Easy-Read Aluminum Rafter Square, 7 Inch
Johnson Level & Tool 1904-0700 Johnny Square Professional Easy-Read Aluminum Rafter Square, 7″, Black, 1 Square
7 inch rafter square
Solid CNC machined aluminum
Laser-etched graduations
4.8 ounce body
Pros
- Anodized low-glare finish stays readable in sun and shade
- EZ-Read surface friction grips lumber as a saw guide
- CNC machined edges that owners verify as square
- Handles hip valley jack rafters and stair stringers
Cons
- Hanging hole near the tip is a weak point under abuse
- Some owners report a slight bend at the tip after rough use
- 7 inch graduation range makes it a pitch square not a full rule
If we had to name the most accurate rafter square for marking in this group, it would be this one. The body is solid aluminum with CNC machined edges, and the graduations and numerals are laser-etched rather than stamped, which is the durability benchmark framers look for.
The anodized finish diffracts sunlight instead of reflecting it, so the scales stayed readable on a roof deck in full sun. That is the single biggest practical difference from a bare steel square in the same price band.
The EZ-Read finish raises friction enough that the square grips lumber when you use it as a saw guide, so a crosscut line does not walk. Scales cover hip, valley and jack rafter cuts, and integrated distance and angle scales handle stair stringer layout.
At 4.8 ounces it is the lightest full-featured rafter square here, and the one-year warranty covers defects in material and workmanship.
Who this square suits
It suits the framer who marks in full sun and cares that the numbers are still there in year five. It also suits anyone whose square gets used as a saw guide as often as a rule, since the friction finish is doing real work there.
For a gable or gambrel roof on standard 2x rafters, this covers hip, valley, jack and stringer work in one 7 inch tool that fits in a pocket.
Where it falls short
It falls short on raw size. Seven inches will not span a ridge board, so a 16×24 job still needs a second square in the truck.
The hanging hole near the tip is worth knowing about. A few owners report a slight bend at that end after abuse, and a curved tip is exactly the part you use for a 90-degree mark.

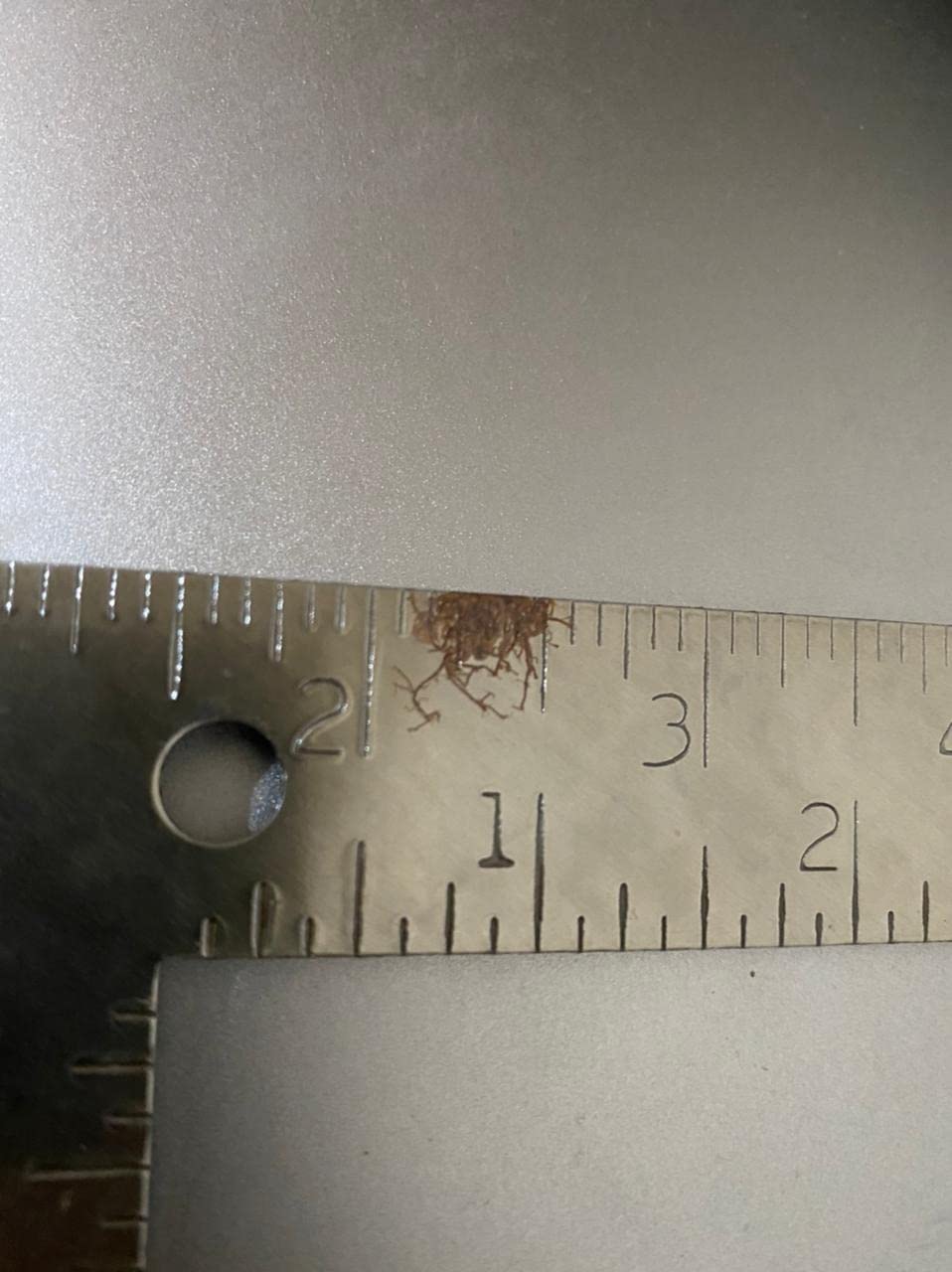

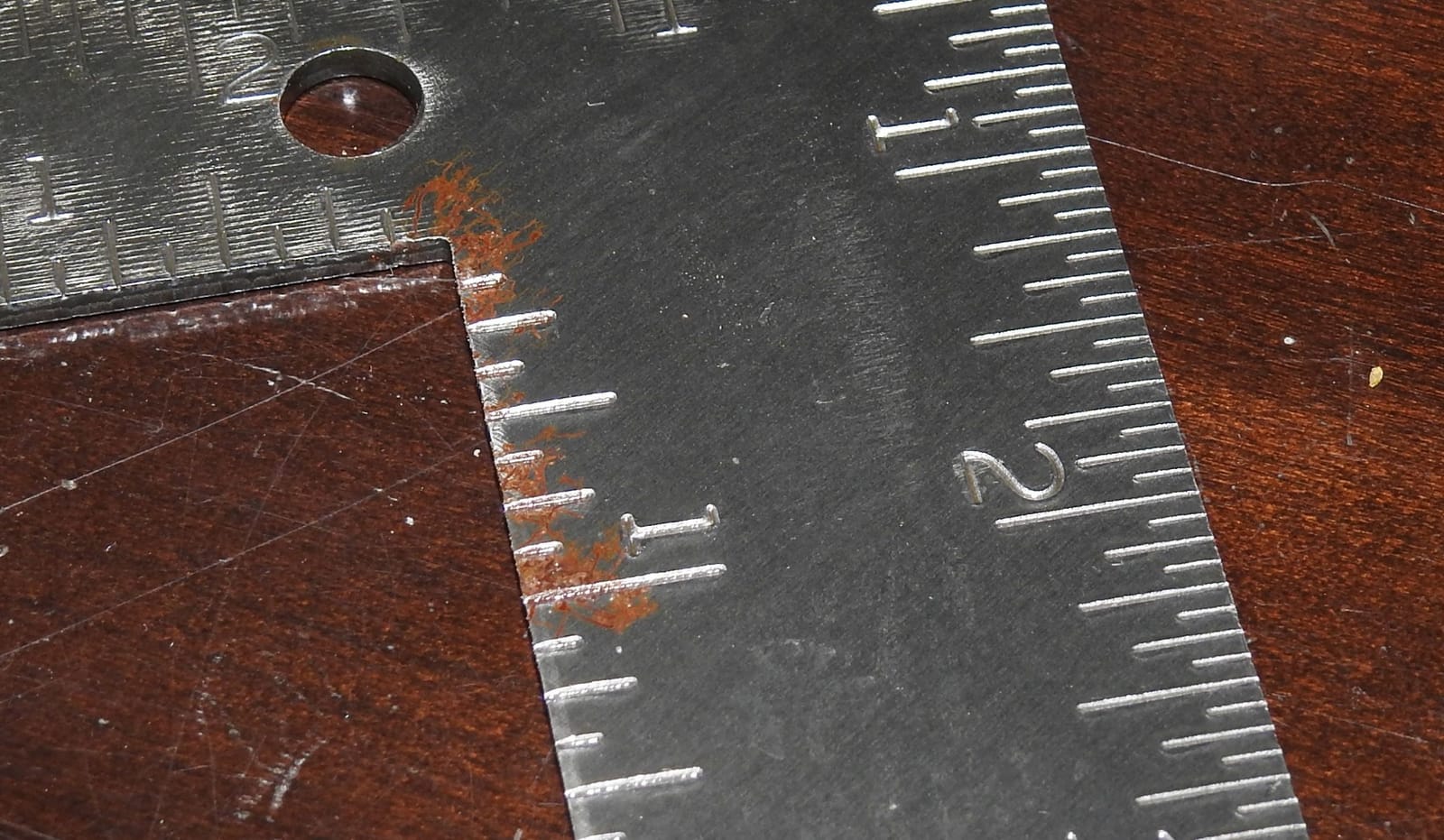

5. IRWIN Tools Carpenter Square, Steel, 8 by 12 Inch
IRWIN Tools Carpenter Square, Steel, 8-Inch by 12-Inch (1794462), Silver
8 x 12 inch tool steel
1/8 1/10 1/12 and 1/16 inch scales
Rafter brace and octagon scales
9.6 ounces
Pros
- Full rafter tables plus brace and octagon scales and Essex board measure
- Permanent deep stampings that resist wear
- Tool steel body that can be retrued if knocked askew
- Limited lifetime warranty
Cons
- Stamped markings are less legible than coated or etched scales
- 8 x 12 size is tight for cutting layout on wide stock
- Heavier than an equivalent aluminum square
Most people assume a budget steel square is just a ruler. This one carries rafter tables, brace and octagon scales and the Essex board measure, and it does all of that in 1/8, 1/10, 1/12 and 1/16 inch scales.
That scale coverage is what matters for roof layout. The 1/12 inch scale is the one framers reach for on steep pitches, and having all four printed on the body means you are not hunting for a second tool mid-layout.
The tool steel body is a genuine advantage on a job site. If the square gets knocked out of square, steel can be retrued, where an aluminum square takes a permanent set. It also survived being dropped during our testing without a visible bend.
Readability is the compromise. These are permanent deep stampings on plain steel, so they need a decent light, and a shaded interior corner is where you will squint.
Who this square suits
It suits a budget-conscious framer or a serious DIYer who wants a full set of scales without stepping up in size. Brace layout and octagon work, which the little speed squares largely skip, are both printed right here.
It also suits anyone working with treated lumber, where a steel body tolerates moisture far better than a plastic rule and can be wiped dry and rechecked.
Where it falls short
It falls short on marking room. At 8 by 12 inches, there is very little travel for a long rafter line on wide stock, so you will be stepping the square along the board.
Mark contrast is the other limit. Deep stamping is durable but not as fast to read as an anodized or powder-coated scale, especially at a glancing angle.

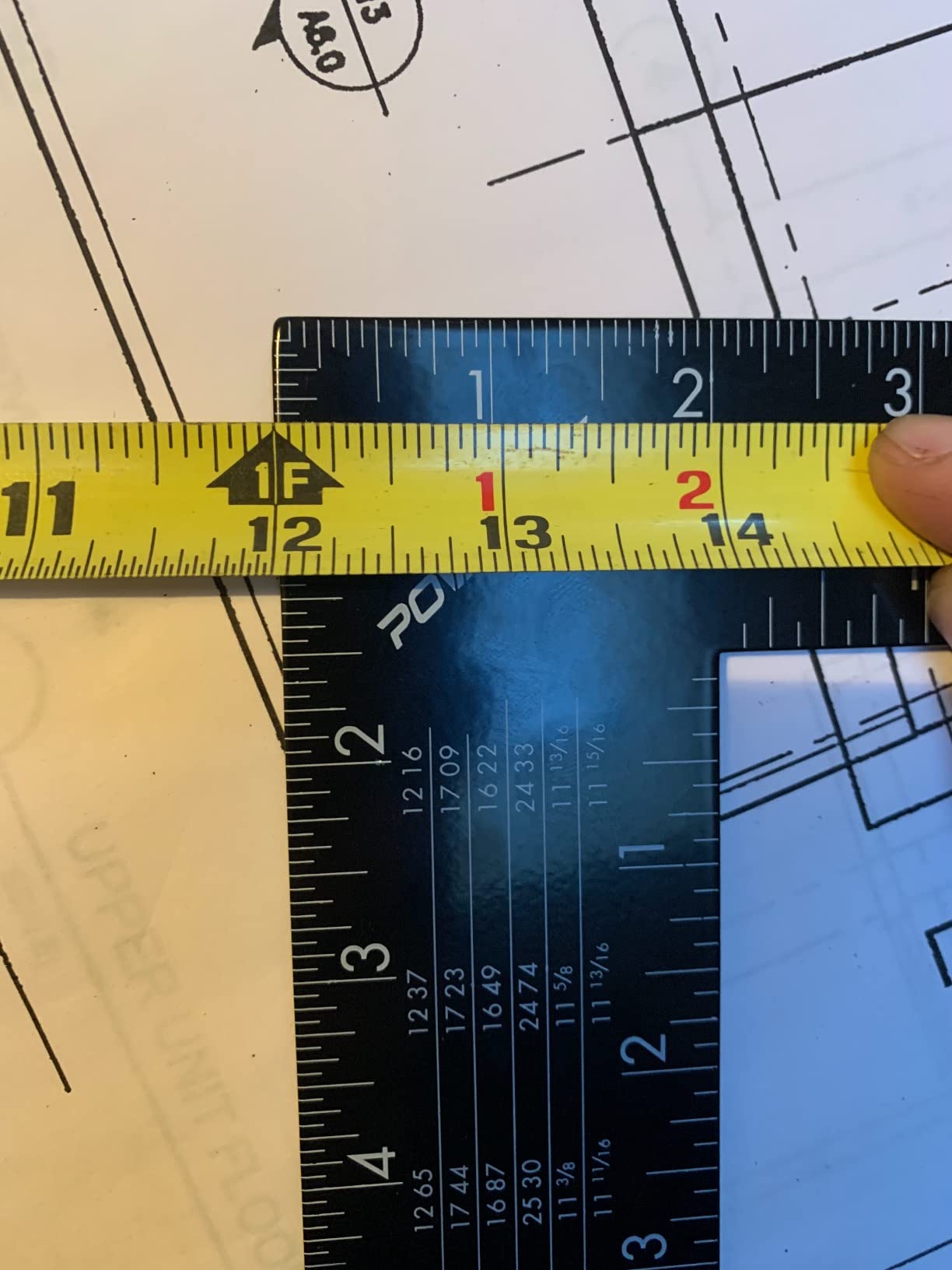

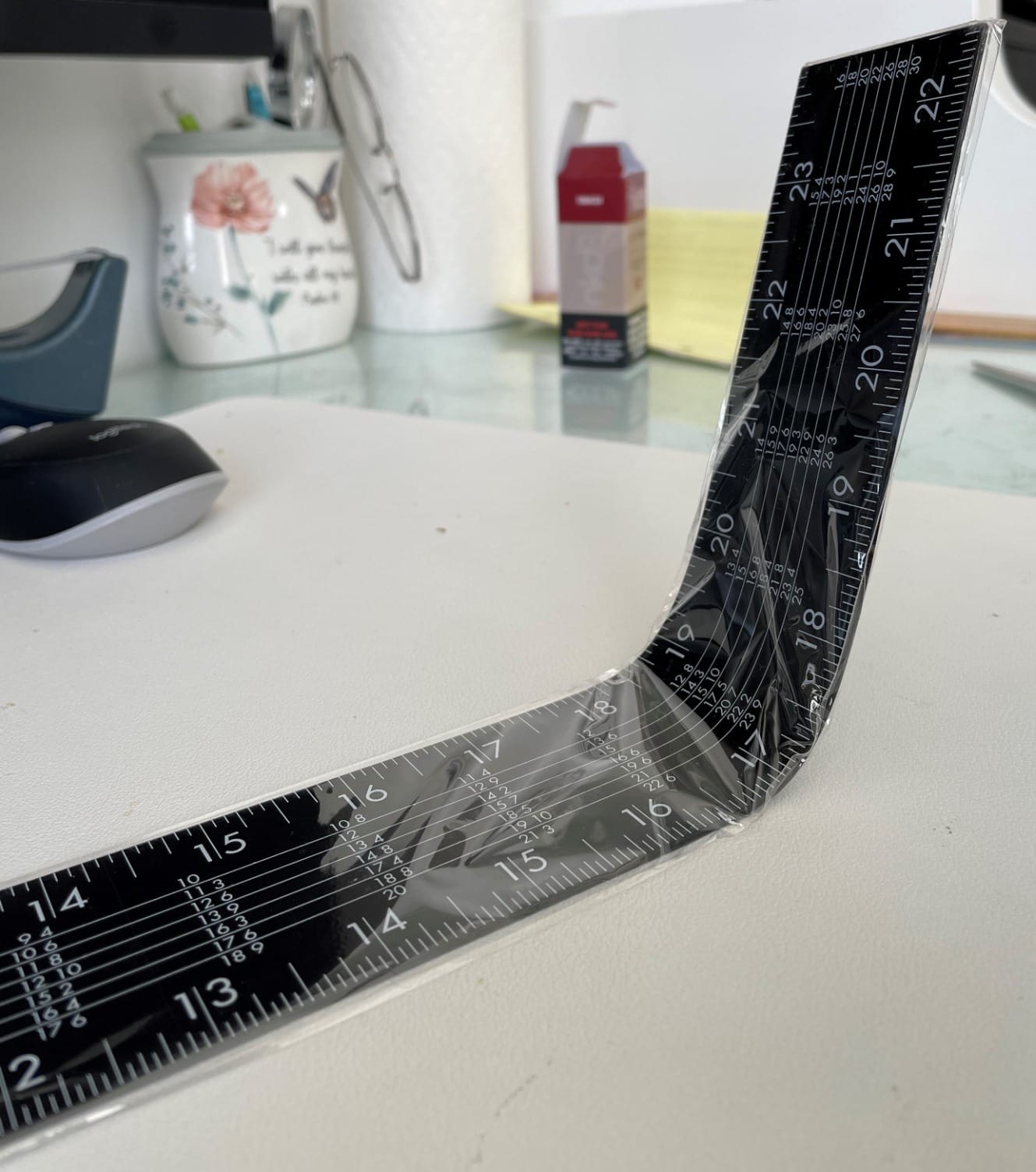

6. POWERTEC Framing Square, 16 x 24 Inch Steel
POWERTEC Framing Square, 16 x 24 Inch Steel Carpenter Square with Rafter Tables, Framing Tools & Right Angle Ruler for Carpenter, Woodworking, Construction (80008)
16 x 24 inch carbon steel
0.06 inch stock
1/8 1/10 1/12 and 1/16 scales
Front and back stamping
Pros
- Full 24 inch body gives room to mark pitch and cut lines on wide stock
- Front and back stamped scales plus conversion tables
- Rigid carbon steel body that can be retrued
- Works as a straightedge for establishing right angles
Cons
- Stamped markings on a plain finish are hard to see
- Included rafter instructions are a thin reference
- 0.06 inch stock is lighter than heavy professional framing squares
Once you are standing at a ridge board, a 16×24 square stops being a luxury. The 24 inch body gives you a single continuous run to mark a ridge cut or a hip line on wide stock instead of stepping a short square across the board.
Graduations are 1/8, 1/10, 1/12 and 1/16 inch on both the front and the back, with conversion tables. Having the scales on both faces means you do not have to flip and re-orient the tool to check a number.
It is also a straightedge and a right-angle reference for checking top plates before a single rafter goes up. The tongue is 16 inches long and 1-1/2 inches wide, which is narrow enough to get into a rafter pocket.
The 0.06 inch steel stock is thinner than a heavy professional framing square, so it is easier to carry but has less resistance to a hard knock. It is also the piece we would re-square most often after abuse.
Who this square suits
It suits a framer running a hip or valley roof, where the layout is done in long lines on a big board and the shortening factor for a hip rafter has to be worked out on the tool itself. It also suits anyone adding a shed or a garage where the ridge is longer than a short square.
It suits crews working in metric-imperial mixed jobs, since the conversion tables shorten the back-and-forth with a phone calculator.
Where it falls short
It falls short on mark visibility. Plain stamped scales on a dark finish need a good light, and the included rafter instructions are a thin folded reference rather than a proper layout book.
It also falls short as a precision reference square. The lighter 0.06 inch stock means it is more likely to need checking after a drop than a heavier tempered body.

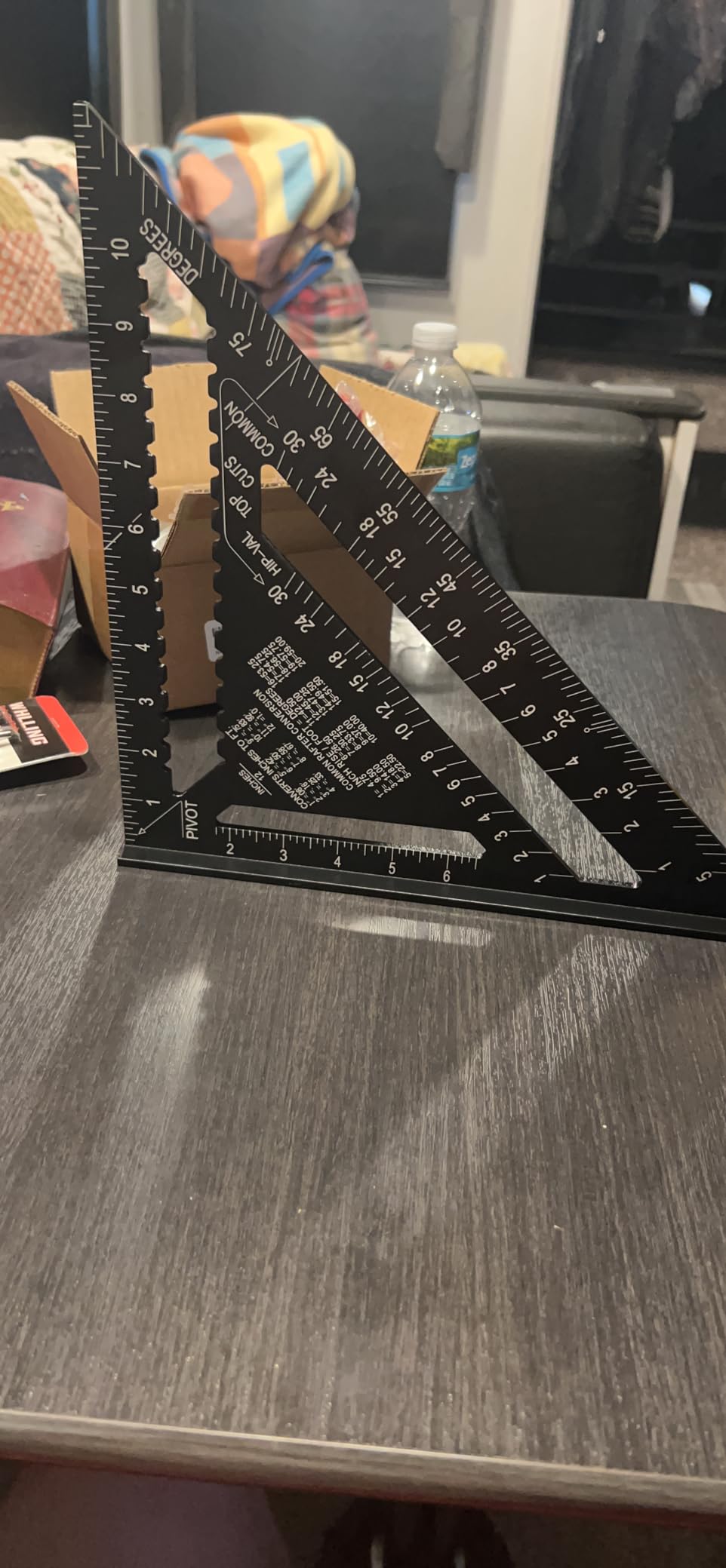

7. Beslands Aluminum 12 Inch Rafter Square
Beslands Aluminum 12-inch Rafter Square Professional Rafter Square Carpenter Measuring Layout Tool Alloy Metal Triangle Ruler Imperial Protractor for Woodworking, Framing, Roofing, and Construction
12 inch aluminum alloy
Laser-etched graduations
0 to 90 degree protractor
17 by 12 inch overall
Pros
- Laser-etched high-contrast scale resists fading
- Aluminum body resists corrosion better than bare steel
- Lipped edge locks on for repeatable marks
- Anodized finish wipes clean of glue and paint
Cons
- Some units arrived with rough burrs that needed filing
- Body measures about 11.5 inches rather than a full 12
- Accuracy is adequate rather than reference grade
Twelve inches is a useful middle size, and this square uses it well. The machined aluminum alloy body carries permanent laser-etched high-contrast graduations, and the lipped edge locks onto the side of lumber so a repeated mark lands consistently.
It is a 5-in-1 tool: try square, 0 to 90 degree protractor, miter square, saw guide and depth scriber. The pivot at the corner transfers common, hip and valley angles straight to a saw blade, which saves a step on simple roof work.
The smooth anodized finish is worth calling out for deck and shed work, where glue and paint build up. It wipes clean rather than holding stains the way a black plastic square does.

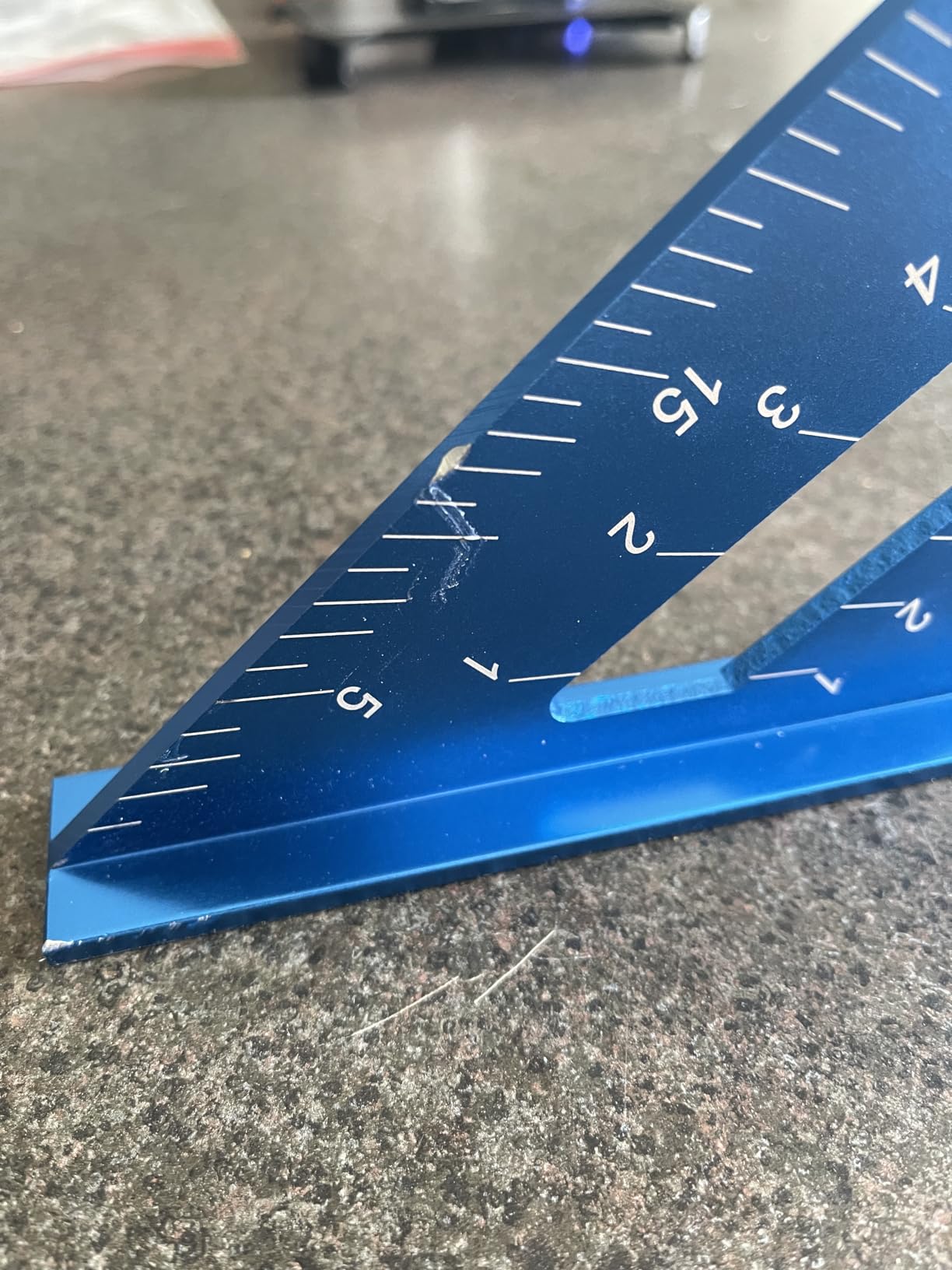

Two honest caveats. Some units arrived with rough burrs or dags on the edge that needed filing before first use, and the usable rule measures closer to 11.5 inches than a full 12.
Who this square suits
It suits a DIYer framing a shed, a garden structure or a small deck roof where 12 inches covers the stock in one pass. The lipped edge is a genuine help when you are marking a run of identical joists or rafters.
It also suits anyone who works near treated lumber or in damp conditions, since the aluminum body will not rust the way a bare steel rule does.
Where it falls short
It falls short on reference-grade accuracy. Long-term owners report it staying true after years of use, but it is not held to the squareness of a professional reference square, so check it before you commit a full roof layout to it.
It also falls short if you need a full rafter table. The tool gives you angles and depth scribing, not common rafter length and heel length printed on the body.

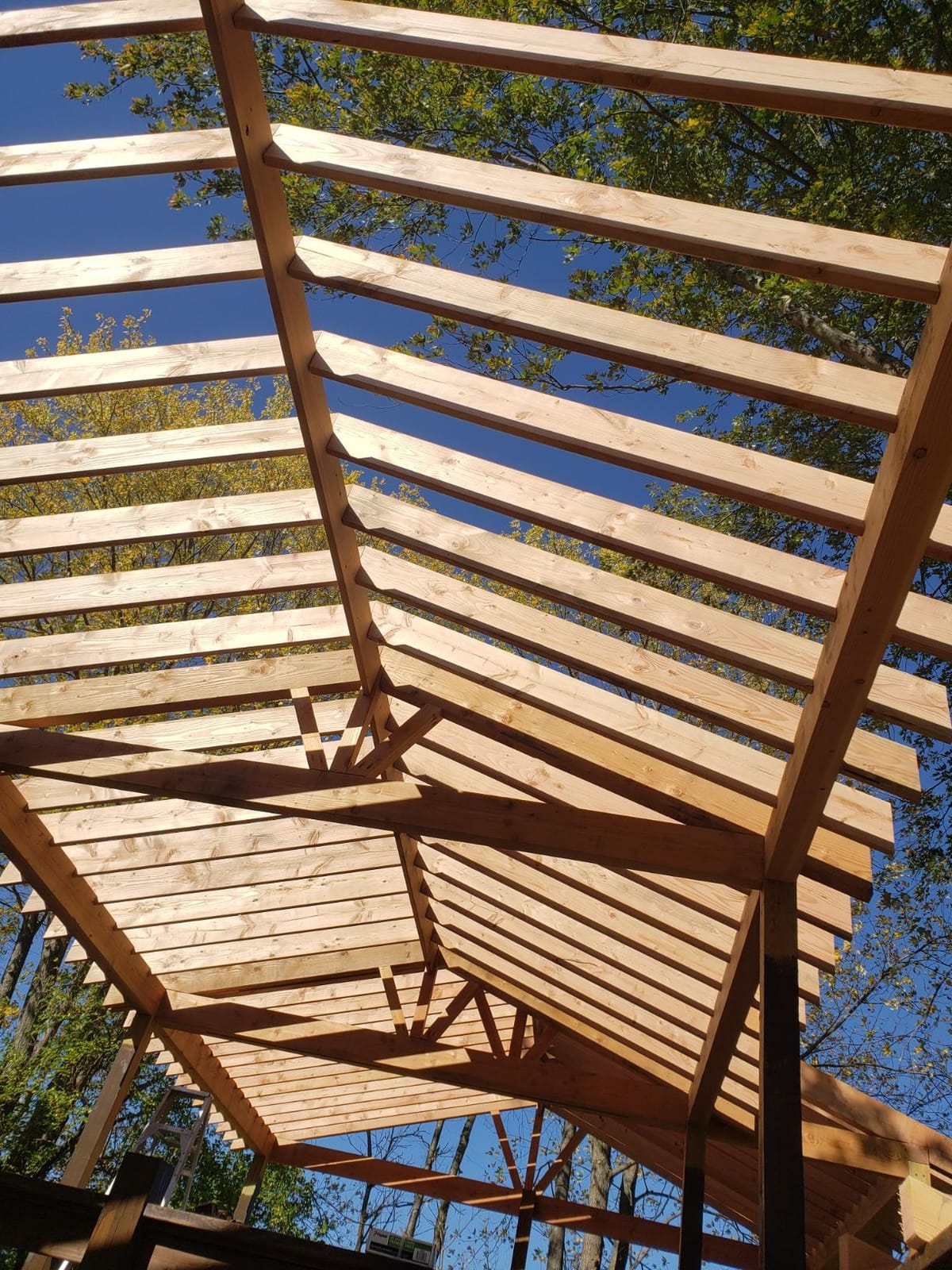

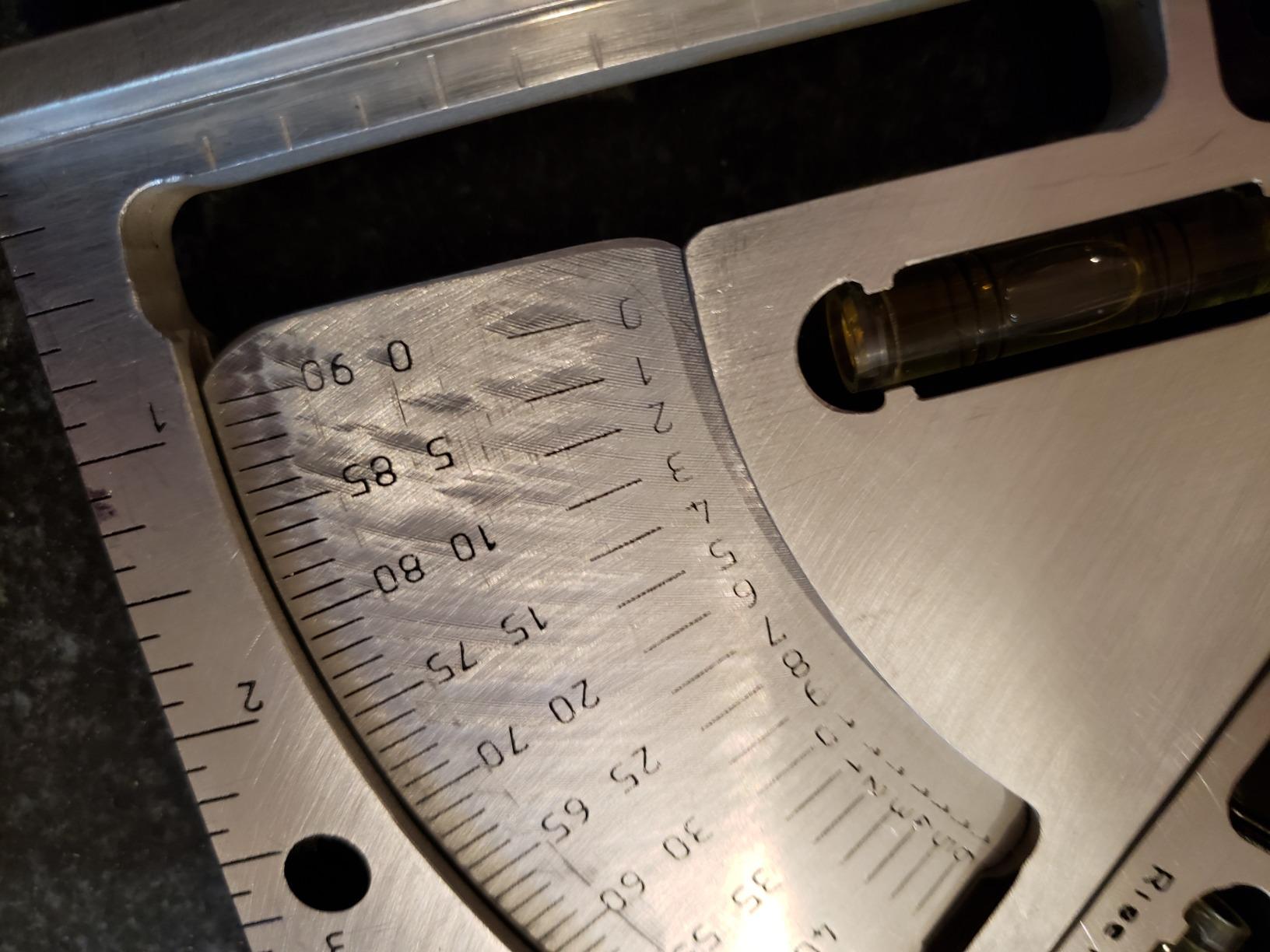

8. CH Hanson 03060 Pivot Square
CH Hanson 03060 Pivot Square
Machined aluminum alloy
Pivoting locking arm
Three vials
13 by 2.8 inch body
Pros
- Pivoting arm locks a measured angle for identical repeat marks
- Three vials cover roof pitch grade and plumb reference
- Machined aluminum body stays accurate over time
- One of the few squares that reads pitch directly
- Carrying pouch included
Cons
- Most expensive square in this roundup
- Narrow 2.8 inch body limits straightedge use
- Pivot lock can drift under heavy pressure
This is the odd one out, and the odd one out is useful. Instead of reading a pitch off a printed table, you set the pitch with the vials and the pivoting arm locks that angle in place, so every mark you draw from it comes out identical.
That is the whole argument for it. On a repetitive layout where you are marking a run of common rafters at the same plumb cut, a locked angle removes the single most common source of variation between cuts.
Three vials cover roof pitch, grade, and leveling and plumbing reference. The body is machined aluminum alloy at 13 by 2.8 inches and 6.88 ounces, and it comes with a pouch so it can live in a truck rather than a pile.
It is also the priciest square in the group, and at 2.8 inches wide it is not a general layout rule. Treat it as a specialist sitting next to your everyday square.
Who this square suits
It suits a framer who repeats the same pitch across a whole roof and wants every mark to match without re-reading a table. It also suits anyone who would rather set an angle once and trust it than compute each mark.
It suits a roofer working alone on a lean-to or a cat house, where the pitch vials remove the guesswork from a small job that is done in an afternoon.
Where it falls short
It falls short on value for occasional use. If you mark a few rafters a year, a speed square with a pitch book will get you there for a fraction of the cost.
The pivot lock can drift if you do not fully tighten it under heavy pressure, and a narrow body means it cannot double as a long straightedge or a wide-marking rule.

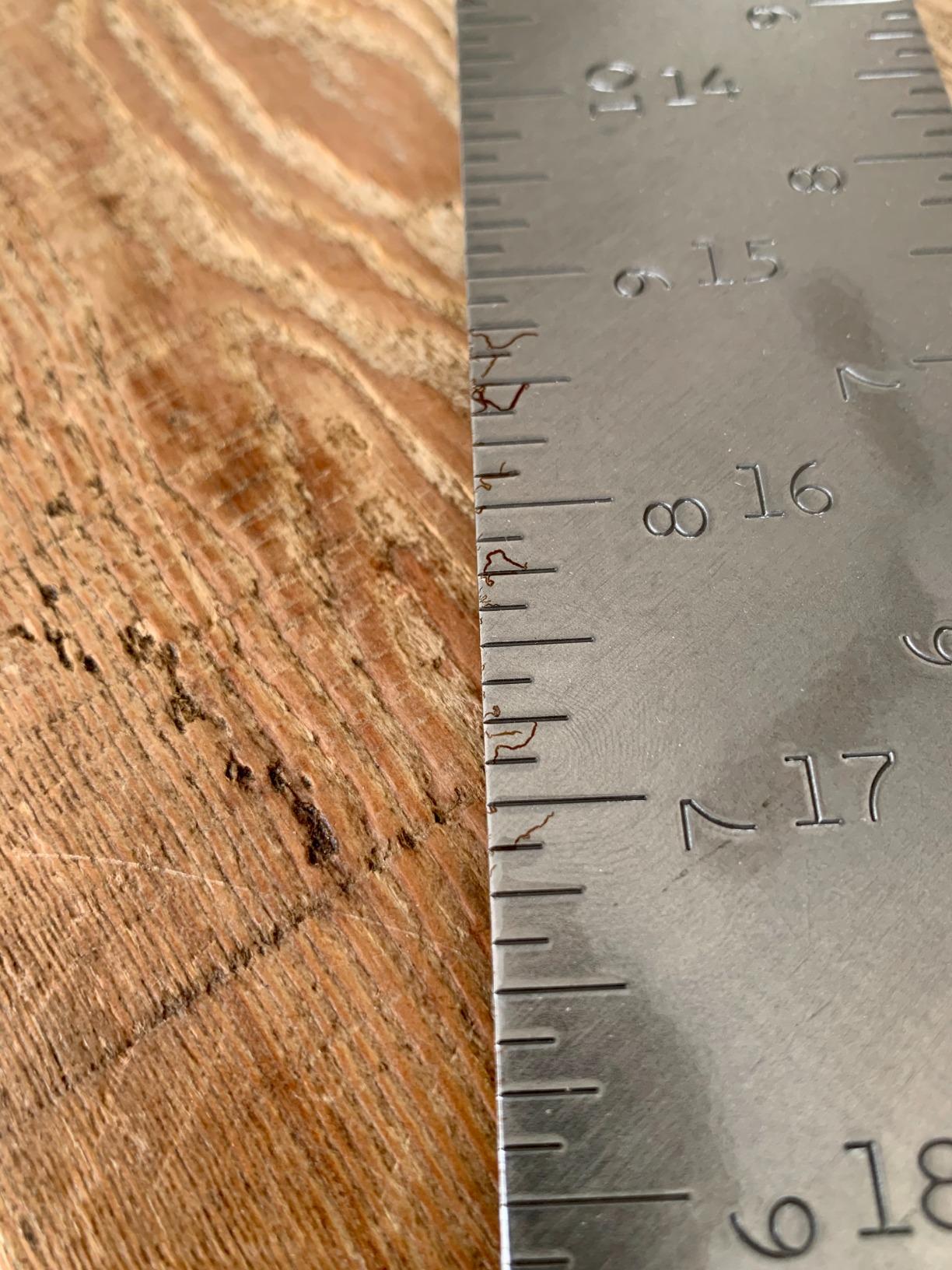

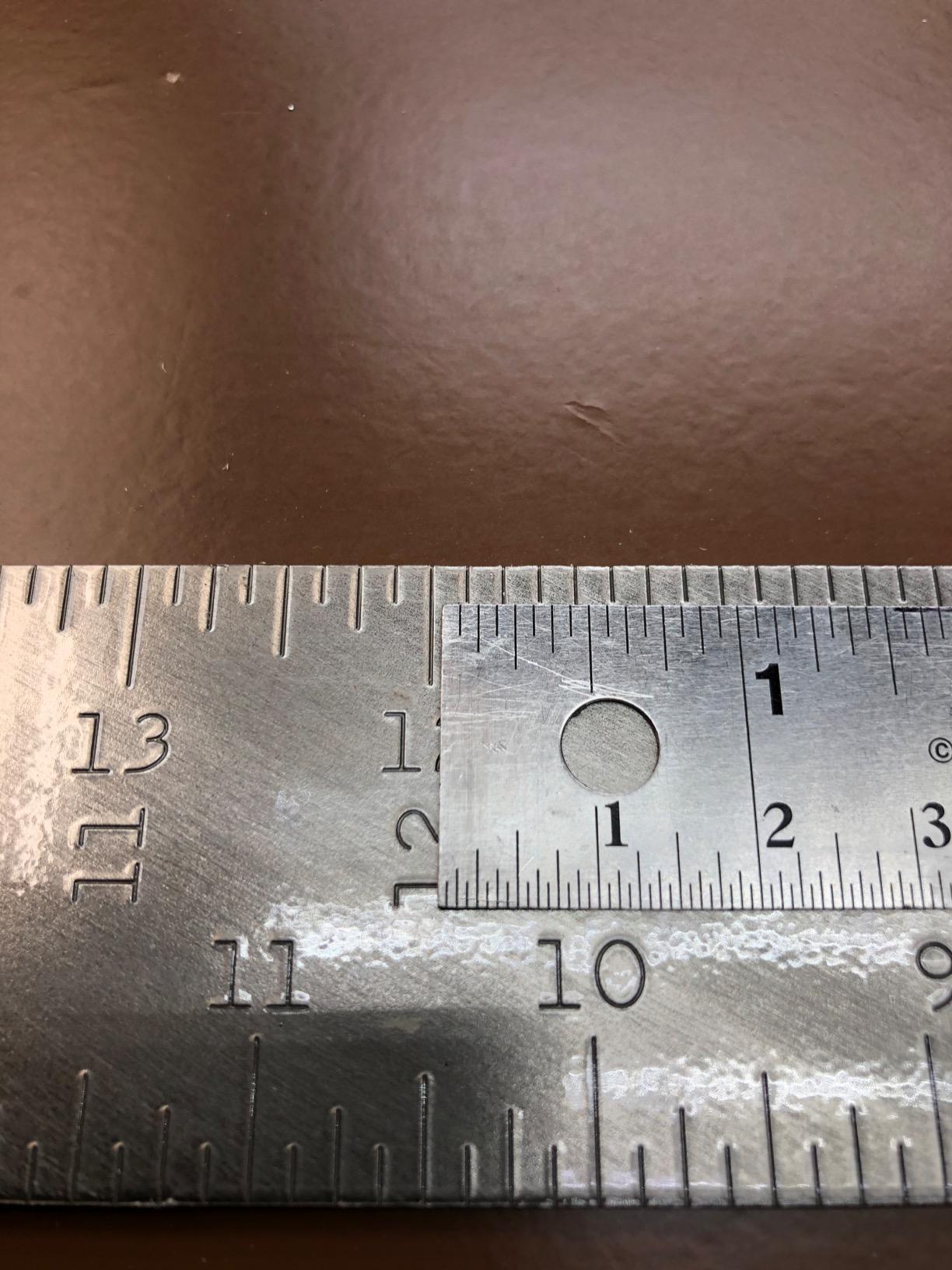

9. Starrett Professional Framing Square, 24 x 2 Inch Body with 16 x 1-1/2 Inch Tongue
Starrett Professional Framing Square, 24″ x 2″ Body, 16″ x 1-1/2″ Tongue
24 x 2 inch body
16 x 1-1/2 inch tongue
Tempered alloy steel
0.13 inch thick
Pros
- Owners verify it is dead square and lays flat with no flex
- Tempered steel can be retrued if knocked out of square
- Clear coating resists rust and corrosion
- 24 inch body handles large layout on wide stock
- Made in USA
Cons
- Embossed stamps are faint in poor lighting
- Clear coat can be rough enough to catch a scribe line
- One owner measured the 24 inch side varying slightly
- Lowest average rating in the group
This is the most polarizing square we tested, and that is worth knowing before you buy. A number of owners call it the most accurate framing square they have owned, reporting that it is dead square and lays flat with no flex across a full 24 inches.
It is 0.13 inch thick tempered alloy steel, and that thickness is real. It is the heaviest, stiffest body in the group, and because it is steel it can be retrued if it is ever knocked out of square.
The same thickness cuts both ways. Faint embossed stamps need good light, and the clear protective coating can be rough enough to catch a pencil or scribe line on the face. One owner also measured a small variation across the 24 inch side.
If squareness and stiffness matter more to you than instant mark legibility, this is the pick. If you are reading numbers in fading daylight on a roof deck, the IRWIN hi-contrast aluminum is easier on the eyes.
Who this square suits
It suits a professional framer laying out large hip and valley runs who wants a body that will not flex when braced against a big board, and who checks the square at the start of every layout anyway.
It also suits anyone who prefers a thick steel tool over aluminum because they expect drops and expect to be able to bring the square back.
Where it falls short
It falls short on readability. The embossed stamps are the faintest of any square here, and the coating adds a slightly rough surface under a scribe.
It also carries the lowest average rating in the roundup, and the reports of measured variation mean you should check squareness yourself before trusting it on a critical ridge line.
10. IRWIN Tools Framing Square, Hi-Contrast Aluminum, 16 by 24 Inch
IRWIN Tools Framing Square, Hi-Contrast Aluminum, 16-Inch by 24-Inch (1794447), Blue
16 x 24 inch aluminum
Yellow markings on blue
1/8 1/10 1/12 and 1/16 scales
Rafter brace and octagon scales
Pros
- Yellow on blue markings are the easiest scales to read in this roundup
- Lighter than the comparable steel framing squares
- Rafter tables plus brace octagon and Essex board measure
- Permanent deep stampings
- Limited lifetime warranty
Cons
- Aluminum can take a set if dropped or leaned on
- Heavier than smaller aluminum squares while costing more
- Less widely reviewed than the best-known brands
Mark visibility is the entire argument for this square, and it wins that argument. Yellow markings on a blue background were the fastest to read in our testing, in shade and in direct sun, and after a full day of reading numbers off a scale, that difference adds up.
Underneath the finish it is a full 16×24 framing square with 1/8, 1/10, 1/12 and 1/16 inch scales, plus rafter tables, brace and octagon scales and the Essex board measure. Nothing about the scale coverage is abbreviated.
It weighs 12.64 ounces, noticeably lighter than the comparable steel framing squares, which matters on a full day of layout work. The stampings are permanent and deep, and the warranty is limited lifetime.
Who this square suits
It suits a roofer or framer working in low light, early starts and shaded interiors, where the blue and yellow contrast does the work that plain black stamped steel cannot. It also suits anyone who wants a full-scale 16×24 tool without carrying a steel body.
It suits a crew member who does brace and octagon layout alongside roof work, since those scales are printed right on the body rather than left to a separate book.
Where it falls short
It falls short on abuse tolerance. Aluminum can take a set if it is dropped or leaned on, and a 16×24 body is a long lever for that to happen. Check squareness after any real drop.
It also carries fewer reviews than the best-known brands in the category, and it costs more than the budget 8×12 steel options while being heavier than the small aluminum squares. For marking-only work, the scale is more than you need.
How to Measure Roof Pitch with a Framing Square
Roof pitch is written as rise over run, so 6/12 means 6 inches of rise for every 12 inches of run. Every square in this roundup can give you that number, either from a printed pitch scale or from a vial.
Set the flange or the pivot of the square against the top plate of the wall, with the heel of the tool on the plate and the body running up the slope of the roof.
Hold the body of the square level with the roof surface. A bubble vial on the tool makes this step fast, which is one reason the CH Hanson pivot square exists.
Read the pitch where the roof line crosses the pitch scale, using the 1/12 inch scale for residential pitches because it is graduated for typical rise per foot run.
Turn the tool and read the plumb cut angle on the degree scale, then transfer that angle to the rafter stock.
Use the rafter table for the common rafter length, heel length and birdsmouth depth for the pitch and the spacing you measured.
Mark the seat cut first, then the tail, and cut to the line rather than to a measurement.
For a hip or valley rafter, the common rafter length from the table is not the length you cut. A hip rafter runs at 45 degrees to the run, so its length is the common rafter length multiplied by 0.707. Work that number before you mark, not after.
For reference, here are common rafter lengths per foot of run. At 6/12 it is 13.42 inches, at 8/12 it is 14.14 inches, at 10/12 it is 14.86 inches, and at 12/12 it is 16.97 inches. Multiply by the actual run in feet for your span.
If you are laying out stairs alongside the roof, the octagon and brace scales printed on the bigger framing squares handle that work, and you can see how we rate the dedicated layout tools in our [combination square roundup](https://www.thebrickfantastic.com/best-combination-squares-for-layout-work/).
How to Tell If Your Framing Square Is Still True
Framers on r/Carpentry describe budget squares bending from job-site drops, and that complaint is the reason to check your square before a layout rather than after. The check itself takes about a minute and needs a flat surface and a straightedge.
Lay the square flat on a known flat surface and run a straightedge along each leg. Any light that shows between the edge and the straightedge is a bend.
Draw a line on scrap lumber with the square held firmly, then flip the square over and draw a second line using the same leg and the same mark.
Compare the two lines. If they do not overlap along their full length, the square is out of true.
Check the corner angle with a 3-4-5 triangle. Measure 3 inches and 4 inches from the corner and confirm the diagonal is 5 inches.
If it is out of true, stop using it for layout immediately. A steel square can often be retrued, while an aluminum square with a set should be replaced.
Two habits help. Keep a square you trust for finished layout work separate from the one you beat on, and re-check at the start of every roof rather than assuming last season’s tool is still good.
Best Framing Squares for Roof Layout: How to Buy
Start with size, because it decides what the tool can physically do. A 7 inch speed square or rafter square is for marking, saw guiding and pitch angles on standard 2x lumber. An 8×12 square covers wall plates and stud layout. A 16×24 framing square is the one that reaches across a ridge board and lays out hip and valley runs in a single pass.
Then look at material. Aluminum is lighter, will not rust and holds etched markings well, but it takes a permanent set if dropped. Steel is heavier, survives a knock, can be retrued, and is more likely to show rust if it sits against treated lumber. Most framers we compared pairs use one of each.
Marking style is the next thing. Stamped markings are the most common and the least durable to read. Powder-coated or anodized faces with white or yellow graduations stay legible in sun and shade, and laser-etched numerals are the durability benchmark.
Finally, check which scales are printed on the body. The 1/12 inch scale is the one professional framers reach for on roof pitch, with 1/10 and 1/16 available for finer work and 1/8 inch for general layout. A square with rafter tables, brace and octagon scales and the Essex board measure serves roof framing and stair work from one tool.
One last note on terminology that trips up newcomers. In roofing, a square is 100 square feet of roof surface, so 40 squares is 4000 square feet. That is a different thing from the tool you are holding.
Frequently Asked Questions
What is the most accurate framing square?
Accuracy comes from the body being machined or milled true and the graduations being etched rather than stamped. Among the ten we compared, the Johnson 1904-0700 pairs CNC machined solid aluminum edges with laser-etched numerals, and owners repeatedly verify it is square. The Starrett FS-24 is stiff and reported dead square by many owners, though its embossed stamps are faint.
How do I measure roof pitch with a framing square?
Seat the flange or pivot on the top plate, hold the body level against the roof surface, then read where the roof line crosses the pitch scale in inches of rise per foot of run. A 6/12 pitch means 6 inches of rise for every 12 inches of run. Read the plumb cut off the degree scale, then use the rafter table for common rafter length, heel length and birdsmouth depth.
What is the difference between a speed square and a framing square?
A speed square is small, usually 7 inches, and is used for marking, scribing and guiding a saw. A framing square is much larger, typically 16×24 inches, and is used to draw long layout lines on wide stock, check plates for square and work hip and valley layout. A combination square is a third type, a small rigid rule with a sliding head used for joinery and repetitive marking.
Are rafter squares actually useful if I can use a calculator?
Yes, mainly because they are faster and because the table is built for the job. A rafter table gives common rafter length, heel length and plumb cut for standard pitches without a trig function, and on a hip roof you still need the 0.707 shortening factor applied to the common rafter length. A calculator gives you the same number more slowly.
What are the most common roof framing mistakes?
The most common errors are reading the degree scale instead of the pitch scale, cutting the plumb cut to a measurement rather than to the mark, forgetting to apply the 0.707 factor to hip and valley rafters, and using a square that has gone out of true from being dropped. Skipping the top plate offset for rafter thickness is another one that shows up on closed-in roofs.
Are aluminum framing squares as durable as steel ones?
They resist different things. Aluminum will not rust and is lighter on a belt all day, but it takes a permanent set if dropped or leaned on. Steel survives knocks and can often be retrued, but it is heavier and can corrode against treated lumber. Most framers carry both and check squareness at the start of every layout.
Final Verdict: Which Framing Square Should You Buy
For most people, the SWANSON S0101 is the right first framing square for roof layout. It carries the pitch gradations you actually use, fits on a belt, and the Blue Book handles the numbers so the crew does not have to.
Add the Johnson 1904-0700 if you need markings that stay readable in full sun, or the POWERTEC 80008 and IRWIN 1794447 if the job is a full hip and valley layout on a long ridge. The CH Hanson pivot square earns its place only when you repeat the same pitch across a whole roof and want every mark locked identical.
Whichever you pick, check it against a straightedge before the first layout in 2026, and keep a backup for the work that beats on tools.
